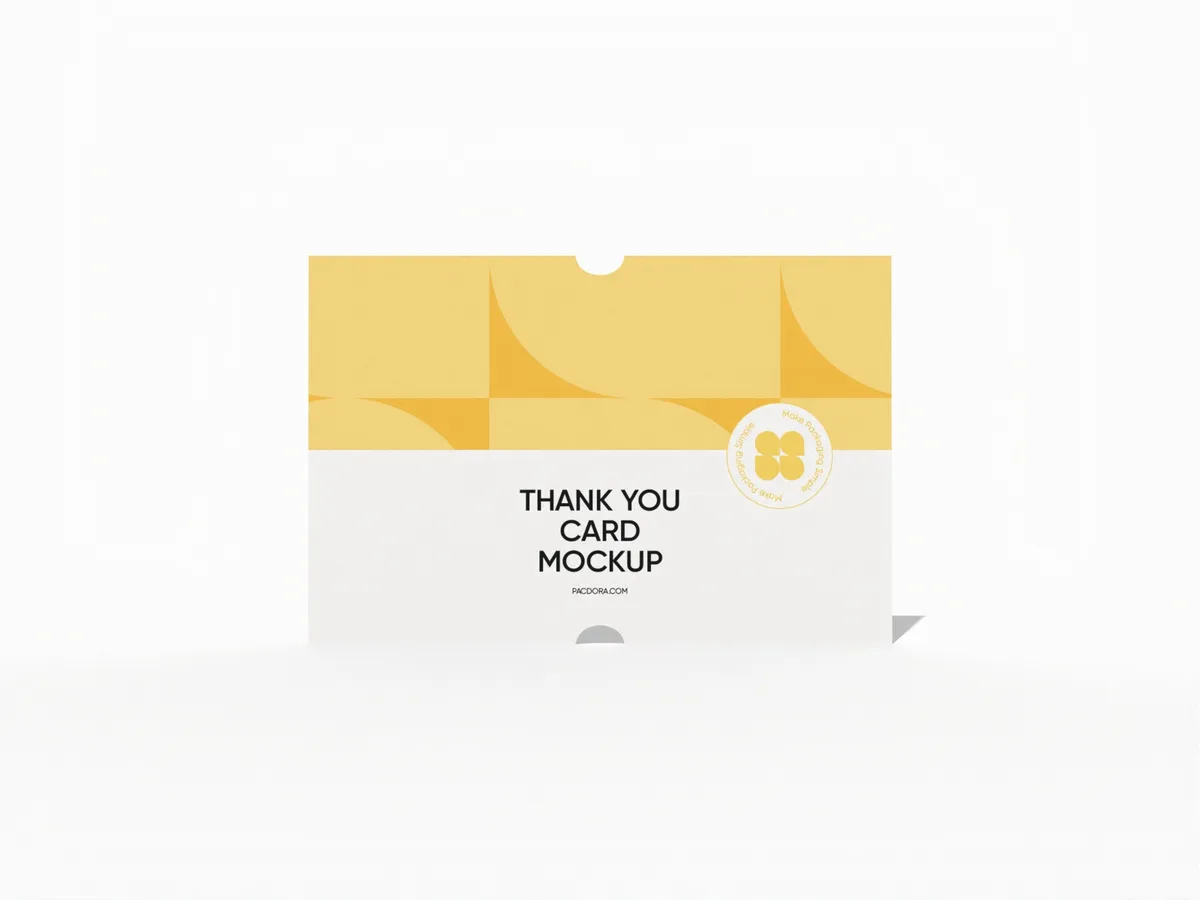

Style reference. Size, materials and printing are customized for your order.
Custom Notched Insert Cards
Plan the finished card outline and the reading order of its printed faces.
- Style reference
- E61271
- Structure
- Flat printed insert card with thumb notches
- Dimensions
- Custom size, confirmed for your product
- Material
- Card stock; thickness and surface finish to confirm
Size around your product.
Specify finished trim and each shaped cut detail separately.
- W
- Finished card widthFinished left-to-right trim in the agreed reading orientation.
- H
- Finished card heightFinished top-to-bottom trim in the same orientation.
Specify the final trim and each thumb notch position and depth separately; a flat card has no carton cavity height.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep important text clear of the final trim and local notches.
Choose the main viewing surface.
Keep important text clear of the final trim and local notches.
Arrange the secondary information.
Organise product details or reverse-side content without crowding the main design.
- Keep important text clear of the final trim and local notches.
Check the design against the approved layout.
Specify finished trim and each shaped cut detail separately.
- Keep important text clear of the final trim and local notches.
Prepare artwork on the approved production artwork template at final size. Confirm bleed, print sides and safe margins before printing.
Request a production artwork templateTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the artwork template on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E61271.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
The reference is one flat card with local thumb notches. Specify its two-dimensional finished trim and the notch positions; carton cell-count dimensions are not applicable.
| Product & example size | Finished flat insert-card trim and notch details | Material to consider | Selection & fit notes |
|---|---|---|---|
| Finished cardInformation to provide: Final width and height |
Confirm flat trimConfirm for your product | Card stock; thickness and surface finish to confirm | Use the agreed reading orientation. |
| NotchesInformation to provide: Position, width and depth of each thumb notch |
Specify notch geometry separatelyConfirm for your product | Card stock; thickness and surface finish to confirm | Keep essential artwork clear of the local cutouts. |
| Packed fitInformation to provide: Outer pack usable footprint |
Confirm insertion and removal clearanceConfirm for your product | Card stock; thickness and surface finish to confirm | Include any other enclosed printed material. |
| Printed facesInformation to provide: Front and reverse artwork |
Check orientation and safe areaConfirm for your product | Card stock; thickness and surface finish to confirm | Review the actual trim at final print size. |
This is a project-specific sizing brief, not a stock size or a measurement inferred from the reference image. Confirm the selected structure, substrate, clearances and assembled sample before production.
