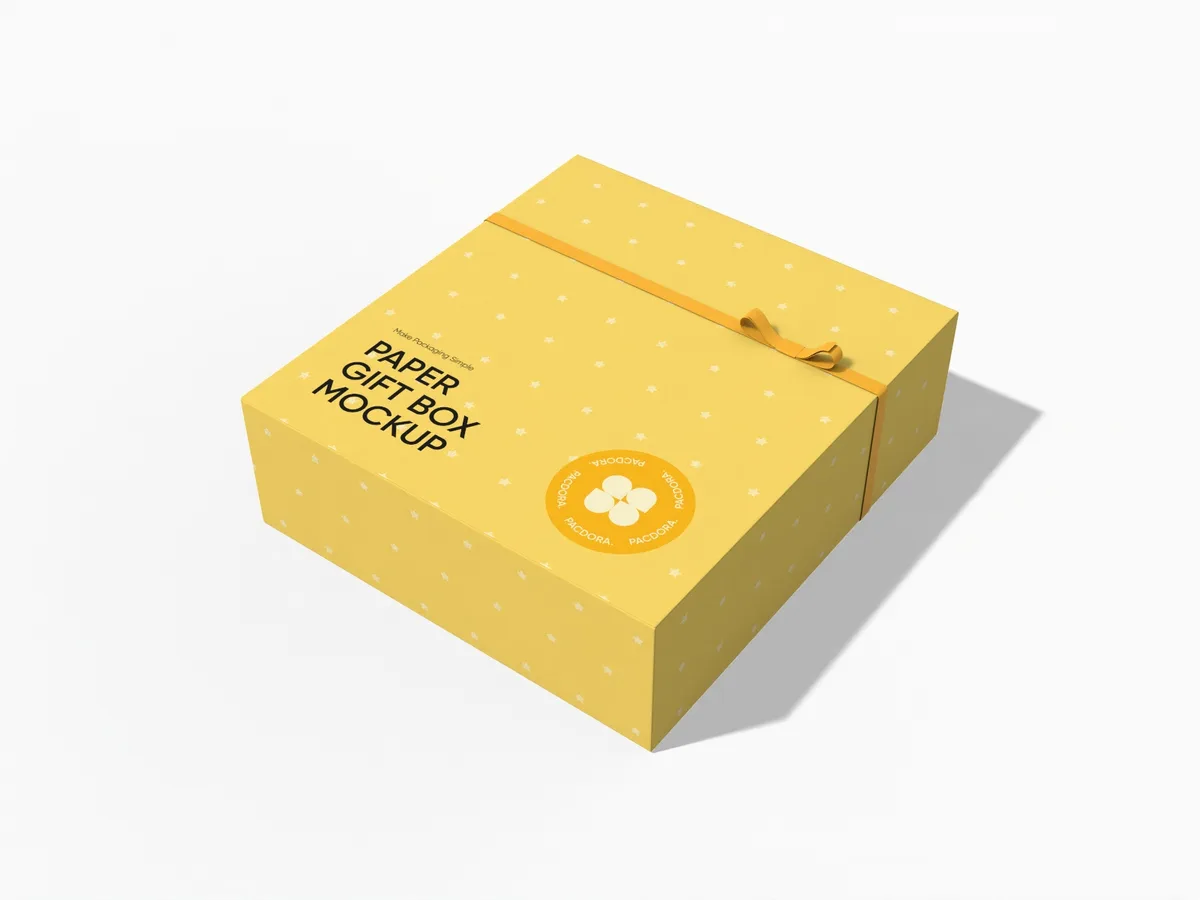

Style reference. Size, materials and printing are customized for your order.
Custom Packaging Boxes
Use the assembled reference to define the intended opening, viewing face and product arrangement.
- Style reference
- E61868
- Structure
- Custom packaging reference
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Provide the product outline and identify the usable cavity and any projecting parts before confirming fit.
- L
- Overall lengthThe first outside span of the reference form in its intended orientation.
- W
- Overall widthThe second outside span, measured at right angles to length.
- H
- Overall heightThe outside height in the same orientation; identify any closure or handle separately.
These labels describe an overall envelope only. Supply the packed product dimensions and identify the usable space, opening and any projecting parts before confirming a fit.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Assign the main artwork only after confirming the assembled viewing face.
Choose the primary viewing face.
Assign the main artwork only after confirming the assembled viewing face.
Plan the surrounding artwork.
Decide which adjoining surfaces need supporting text, colour or a repeated pattern.
- Assign the main artwork only after confirming the assembled viewing face.
Check the artwork through the opening sequence.
Provide the product outline and identify the usable cavity and any projecting parts before confirming fit.
- Assign the main artwork only after confirming the assembled viewing face.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E61868.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Use the examples below to prepare a project brief. The image alone does not establish the construction, usable cavity or material specification.
| Product & example size | A size and material brief for this reference | Material to consider | Selection & fit notes |
|---|---|---|---|
| One wrapped retail itemInformation to provide: Full wrapped outline and intended opening |
Confirm usable space around the itemConfirm for your product | Discuss the substrate after reviewing the structure | The wrapping and opening method determine the necessary clearances. |
| A set of small itemsInformation to provide: Complete arrangement with dividers or supports |
Confirm the full packed arrangementConfirm for your product | Discuss board and any separate insert together | Agree the layout before selecting the outer dimensions. |
| A product with projecting featuresInformation to provide: Maximum outline, including caps or accessories |
Confirm clearance at the widest pointsConfirm for your product | Material grade and construction to confirm | A regular bounding box is only the starting point for a fit check. |
| A fragile itemInformation to provide: Item dimensions, wrapping and delivery needs |
Confirm space for a complete protective packConfirm for your product | Review the complete material and support system | The reference shape alone does not establish protection in transit. |
Confirm the selected structure and fit before assigning production dimensions. These are brief-writing examples, not stock sizes or material specifications.
Discuss your size & material
