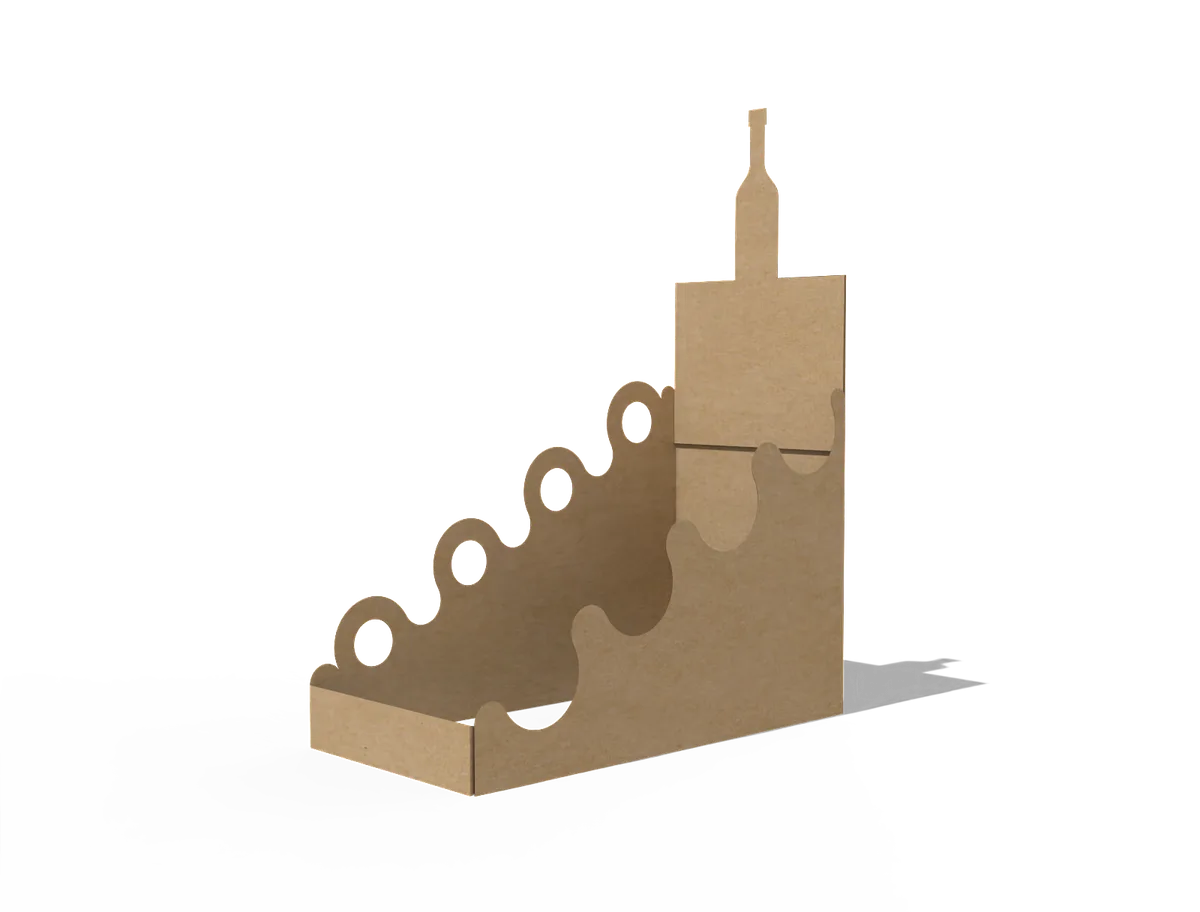

Style reference. Size, materials and printing are customized for your order.
Custom 4-Bottle Display Stands
Use the reference to plan how the product is held and which face carries the main retail message.
- Style reference
- E61611
- Structure
- Retail display
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Confirm the number of units, their packed outlines and which surfaces remain visible when loaded.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
Give the available shelf or counter footprint and overall height, plus product size, unit count and filled weight. Any header or projecting feature is part of the external envelope.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Design the header, product-facing area and support surfaces according to their visibility.
Choose the main viewing surface.
Design the header, product-facing area and support surfaces according to their visibility.
Arrange the secondary information.
Place supporting copy where products, shelves or adjoining packs will not cover it.
- Design the header, product-facing area and support surfaces according to their visibility.
Check the design against the approved layout.
Confirm the number of units, their packed outlines and which surfaces remain visible when loaded.
- Design the header, product-facing area and support surfaces according to their visibility.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E61611.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Choose a starting format for this product type, then confirm it against your content, use and selected construction.
| Product & example size | Complete bottle arrangement and carrying structure brief | Material to consider | Selection & fit notes |
|---|---|---|---|
| Compact bottles in the stated arrangementExample project: Each actual bottle diameter, total height and filled weight |
Develop from the chosen row and column arrangementConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Include dividers or holding features and the handle clearance. |
| Wider bottlesExample project: Widest bottle profile including shoulders or labels |
Recalculate spacing and complete carrier footprintConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Do not size the pack from volume alone. |
| Tall bottlesExample project: Actual body and neck profiles |
Confirm body support and height above the supportConfirm for your product | Corrugated board; flute and strength to confirm | Check balance and the full loaded carrying sample. |
| Mixed bottle setExample project: Every bottle profile and its position |
Develop individual support positions around the full setConfirm for your product | Corrugated board; flute and strength to confirm | Match the count in the chosen reference; adding or removing bottles changes the structure. |
These are illustrative design starting points, not stock sizes or measurements of this reference. Confirm material, construction, printing and sample fit before production. Specify individual bottle dimensions, count and filled weight separately.
Discuss your size & material
