Reference rendering of this structure. Artwork, material and final dimensions are confirmed for your project.
Custom Counter Display Trays
A shallow display tray with a raised back panel made from the top section. Plan the product grouping, front message and rear display artwork together.
- Style reference
- E60010
- Structure
- Open tray · raised back panel · folding side walls
- Dimensions
- Custom size, confirmed for your product
- Material
- White paperboard appearance shown; grade and display load to confirm
Size around your product.
Set the product arrangement first. Give the tray footprint and front-wall height, then specify the raised header separately.
- L
- LengthThe width of the product display area across the front.
- W
- WidthThe usable depth from the front wall to the rear wall.
- H
- Front-wall heightThe tray wall height; the raised back panel extends above this measurement.
The display's total external height includes the header. Confirm product count, access and stability using the filled sample.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.

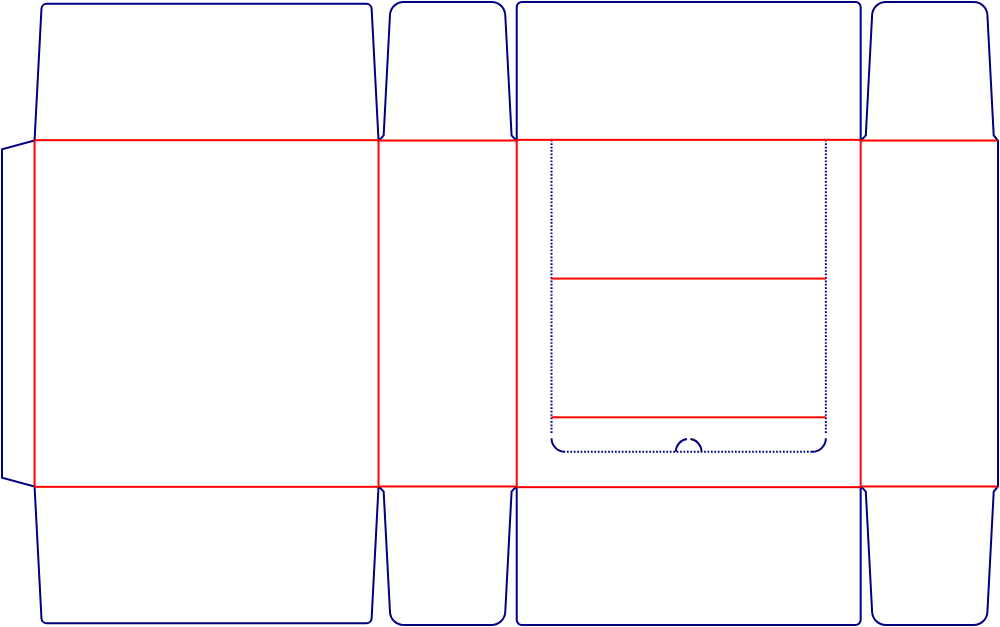

The dieline includes a panel that folds up to form the rear display. Establish its final upright orientation before adding the headline.
Keep the headline above the products.
Use the raised back panel for the main product name or campaign image, checking that contents do not cover it.
- Check the folding direction before setting text.
- Leave space around cuts and perforations.
Make the short message easy to read.
Use the front wall for a concise product message visible at counter level.
- Keep essential text above the lower fold.
- Check readability with products loaded.
Support the display from other angles.
Repeat a simple brand element on the side walls and keep the base treatment consistent.
- Mark areas hidden by the product group.
- Check side-wall overlaps and tray assembly.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60010.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Example dimensions describe the grouped contents. The raised header is specified separately from these tray dimensions.
| Product & example size | Suggested tray internal footprint and front-wall height | Material to consider | Selection & fit notes |
|---|---|---|---|
| A stack of card packsExample packed product: 160 × 110 × 25 mm |
180 × 130 × 35mm · L × W × H | SBS white paperboard | Check the filled stack and reserve a visible header area. |
| A group of wrapped mini soapsExample packed product: 180 × 120 × 30 mm |
200 × 140 × 40mm · L × W × H | SBS white paperboard | Arrange the wrapped pieces and confirm access from the front. |
| Flat accessory presentation cardsExample packed product: 190 × 135 × 30 mm |
215 × 160 × 45mm · L × W × H | Kraft paperboard | A kraft display surface; review the visible front edge. |
| Small closed retail tinsExample packed product: 210 × 150 × 35 mm |
235 × 175 × 50mm · L × W × H | White-faced corrugated board | Discuss the filled load and use a suitable board grade. |
These are illustrative design starting points, not fixed stock sizes or confirmed production specifications. Example product dimensions include the planned wrapping. Confirm the complete pack, material grade and fit with a sample. Front-wall height is not the overall display height, and the stated dimensions do not establish a load rating.
