Style reference. Size, materials and printing are customized for your order.

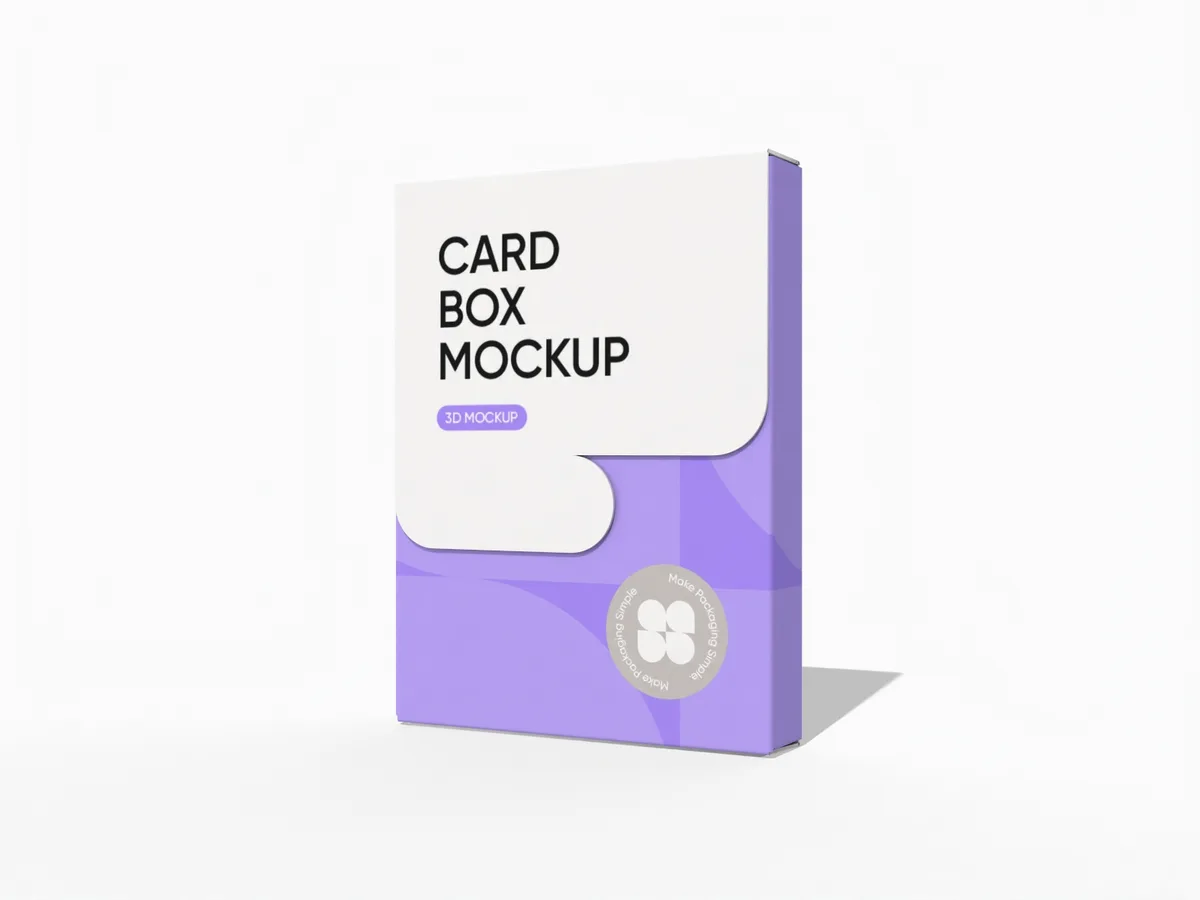

Custom Card Boxes with Fold-Over Covers
A broad cover folds over the card enclosure. Plan the closed cover and the exposed inner face around the card-stack presentation.
- Style reference
- E60215
- Structure
- Card box with fold-over cover
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Provide finished card width and height, complete stack thickness and cover-closing clearance separately.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
State whether measurements describe the contents, usable internal space or outside of the carton. Include caps, wrapping and any insert when checking fit.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Check the cover and inner-face artwork in their closed and opened reading directions; keep the retaining tongue clear.
Choose the main viewing surface.
Check the cover and inner-face artwork in their closed and opened reading directions; keep the retaining tongue clear.
Arrange the secondary information.
Use other visible surfaces for instructions, ingredients or a short product story, as relevant to the contents.
- Check the cover and inner-face artwork in their closed and opened reading directions; keep the retaining tongue clear.
Check the design against the approved layout.
Provide finished card width and height, complete stack thickness and cover-closing clearance separately.
- Check the cover and inner-face artwork in their closed and opened reading directions; keep the retaining tongue clear.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60215.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Size the enclosure from the complete stack of cards and its wrap. The broad folding cover and retaining tongue require their own opening and overlap clearance.
| Product & example size | Enclosed card trim, complete stack thickness and closed-box clearance | Material to consider | Selection & fit notes |
|---|---|---|---|
| Card stackInformation to provide: Finished card width and height, full quantity and stack thickness |
Develop the usable enclosed cavityConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Include any wrap, envelopes or additional printed pieces. |
| CoverInformation to provide: Closing direction, cover overlap and retaining tongue |
Confirm cover sweep and engagementConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Review access with the complete card stack inside. |
| Box wallsInformation to provide: Board thickness and folded wall positions |
Specify inside and outside dimensions separatelyConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | The outside outline is larger than the usable stack space. |
| ArtworkInformation to provide: Closed front and open inner faces |
Confirm each reading directionConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Keep essential text clear of the curved closing tongue and edges. |
This is a project-specific sizing brief, not a stock size or a measurement inferred from the reference image. Confirm the selected structure, substrate, clearances and assembled sample before production.
