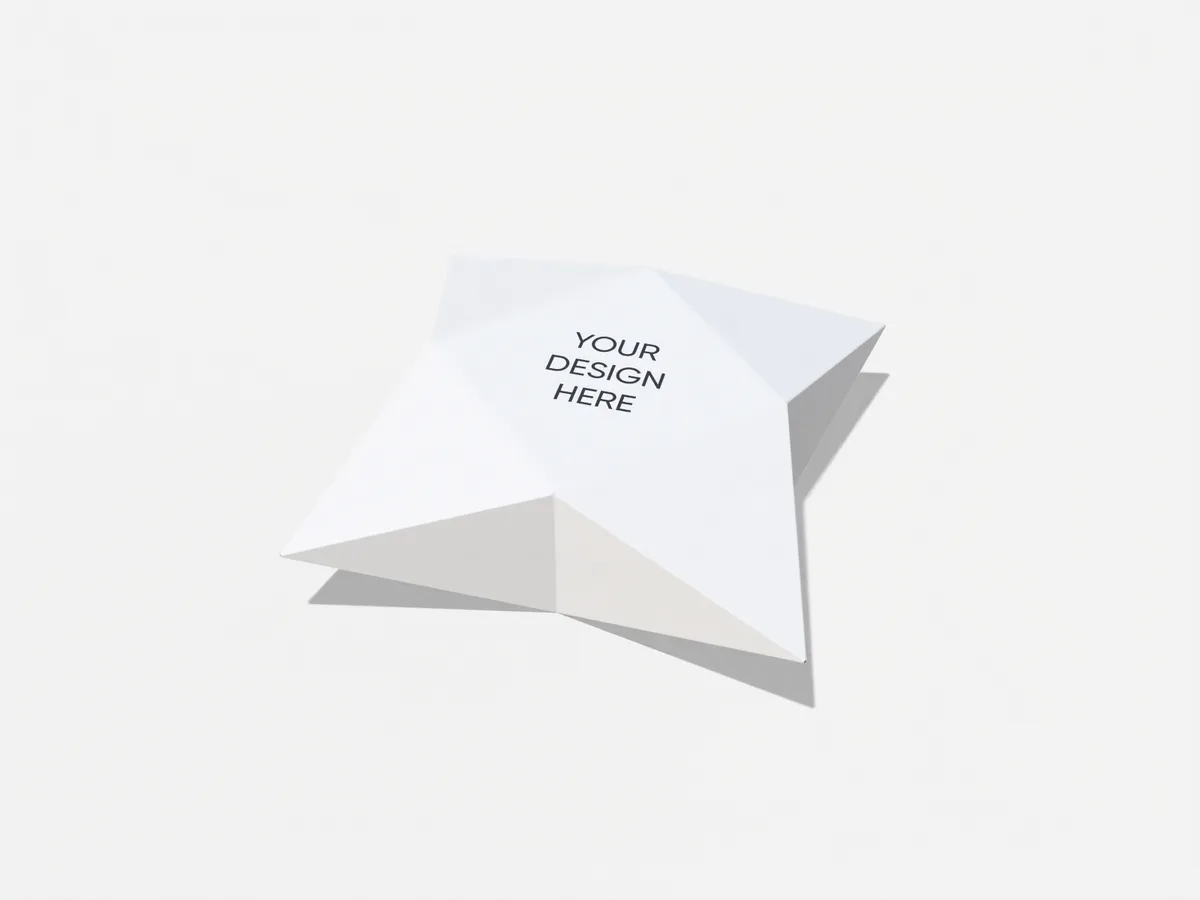

Style reference. Size, materials and printing are customized for your order.
Custom Four-Point Star Boxes
Plan the printed presentation around the star outline and the direction in which its points are assembled. Give the maximum point-to-point envelope and check the smaller usable central cavity.
- Style reference
- E61154
- Structure
- Four-point star box
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Give the maximum point-to-point envelope and check the smaller usable central cavity.
- L
- LengthThe longer side across the usable base.
- W
- WidthThe shorter side across the usable base.
- H
- HeightThe usable depth from the base to the closed top, or the open rim where applicable.
Treat length, width and height as a bounding envelope only. Supply the product outline and thickness; the useful cavity must be checked against the selected shape.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep essential text on the central area and review artwork at each folded point.
Choose the main viewing surface.
Keep essential text on the central area and review artwork at each folded point.
Arrange the secondary information.
Use secondary areas only after checking their orientation and visibility on an assembled sample.
- Keep essential text on the central area and review artwork at each folded point.
Check the design against the approved layout.
Give the maximum point-to-point envelope and check the smaller usable central cavity.
- Keep essential text on the central area and review artwork at each folded point.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E61154.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Choose a starting format for this product type, then confirm it against your content, use and selected construction.
| Product & example size | Example product envelope; shaped box dimensions developed separately | Material to consider | Selection & fit notes |
|---|---|---|---|
| Small wrapped accessoryWhat to measure: Actual product and wrap |
60 × 40 × 20mm · L × W × H | SBS or kraft paperboard; grade and caliper to confirm | These dimensions describe the contents; develop the shaped cavity around them. |
| Compact giftWhat to measure: Actual product arrangement |
100 × 70 × 35mm · L × W × H | SBS or kraft paperboard; grade and caliper to confirm | Check the narrower parts of the shape and the opening. |
| Grouped presentationWhat to measure: All items in their planned arrangement |
150 × 100 × 45mm · L × W × H | SBS or kraft paperboard; grade and caliper to confirm | Check whether an insert is needed for the irregular outline. |
| Taller gift itemWhat to measure: Product including any cap or projecting feature |
60 × 60 × 120mm · L × W × H | SBS or kraft paperboard; grade and caliper to confirm | Confirm the usable height and the opening path. |
These are illustrative design starting points, not stock sizes or measurements of this reference. Confirm material, construction, printing and sample fit before production. A maximum bounding box does not describe the usable space of an irregular shape.
Discuss your size & material
