Style reference. Size, materials and printing are customized for your order.
Custom Hanging Display Pockets
Plan the visible product, open pocket and backing panel together.
- Style reference
- E60408
- Structure

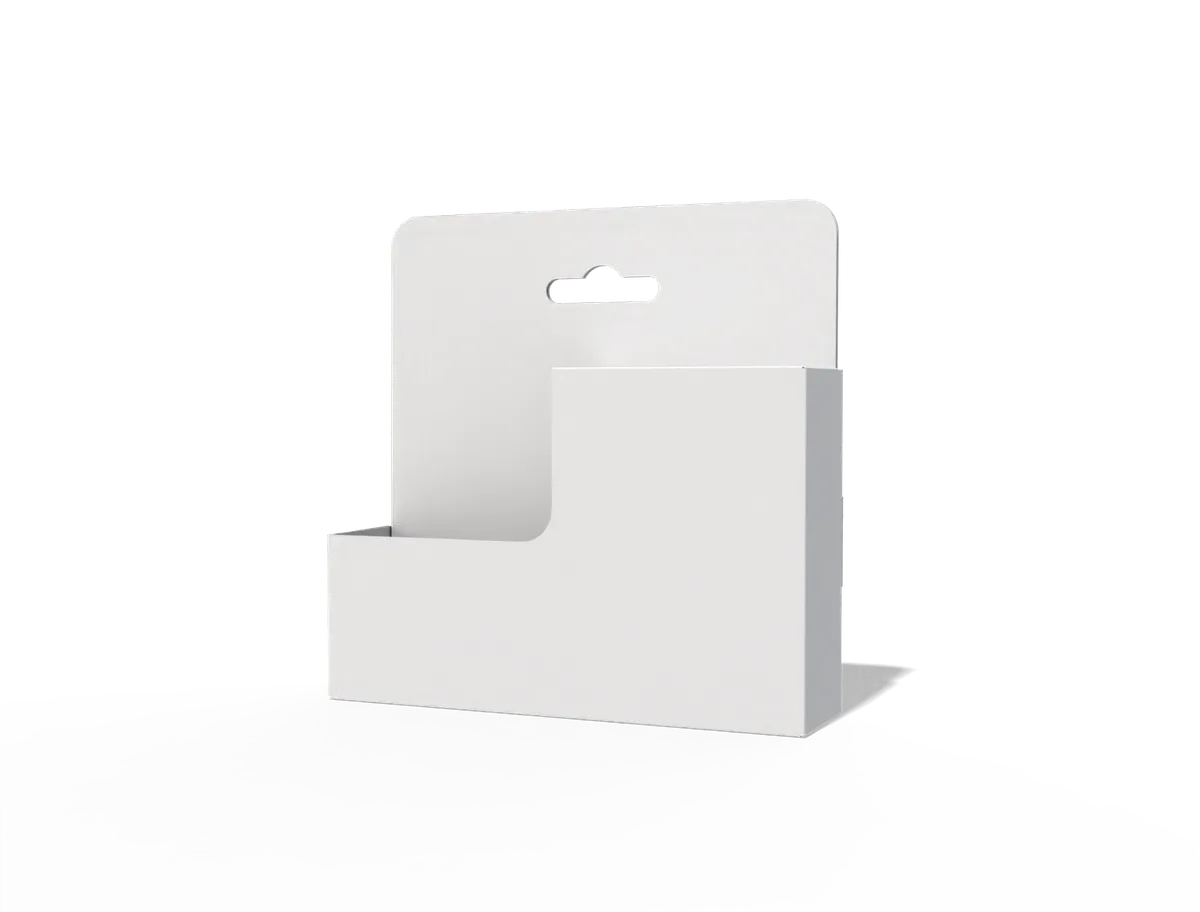

- Open-front hanging display pocket
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Specify the pocket cavity and full backing/attachment outline separately.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
Give the available shelf or counter footprint and overall height, plus product size, unit count and filled weight. Any header or projecting feature is part of the external envelope.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep the pocket front and backing artwork readable with the product loaded.
Choose the main viewing surface.
Keep the pocket front and backing artwork readable with the product loaded.
Arrange the secondary information.
Place supporting copy where products, shelves or adjoining packs will not cover it.
- Keep the pocket front and backing artwork readable with the product loaded.
Check the design against the approved layout.
Specify the pocket cavity and full backing/attachment outline separately.
- Keep the pocket front and backing artwork readable with the product loaded.

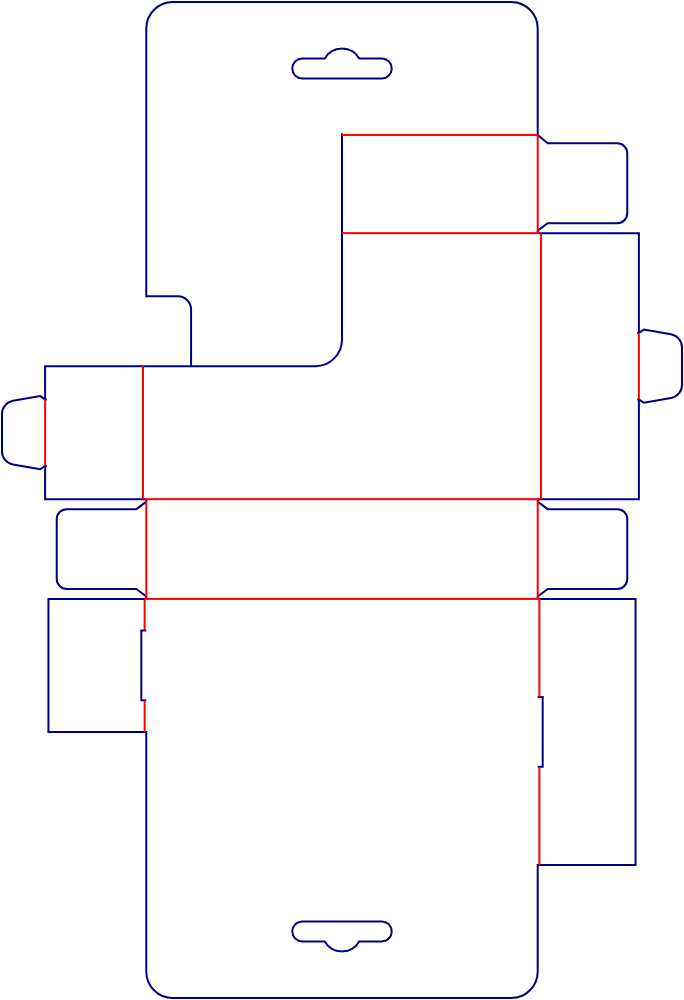

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60408.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Size the open-front pocket around its contents and give the hanging extension separately. A closed-carton top/bottom tuck allowance is not applicable.
| Product & example size | Hanging pocket cavity and full backing-card outline | Material to consider | Selection & fit notes |
|---|---|---|---|
| Pocket contentsInformation to provide: Complete card or product-stack outline |
Develop the usable pocket cavityConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Check the exposed area above the stepped front. |
| Backing panelInformation to provide: Full backing width and height |
Specify the full assembled outlineConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | The backing extends above the contents. |
| Hook openingInformation to provide: Actual hook arrangement and required clearance |
Specify the opening size and positionConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Keep artwork and cut edges clear of the attachment. |
| Loaded displayInformation to provide: Complete quantity, orientation and weight |
Review the loaded assembled sampleConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | The reference does not establish load capacity or installation performance. |
This is a project-specific sizing brief, not a stock size or a measurement inferred from the reference image. Confirm the selected structure, substrate, clearances and assembled sample before production.
