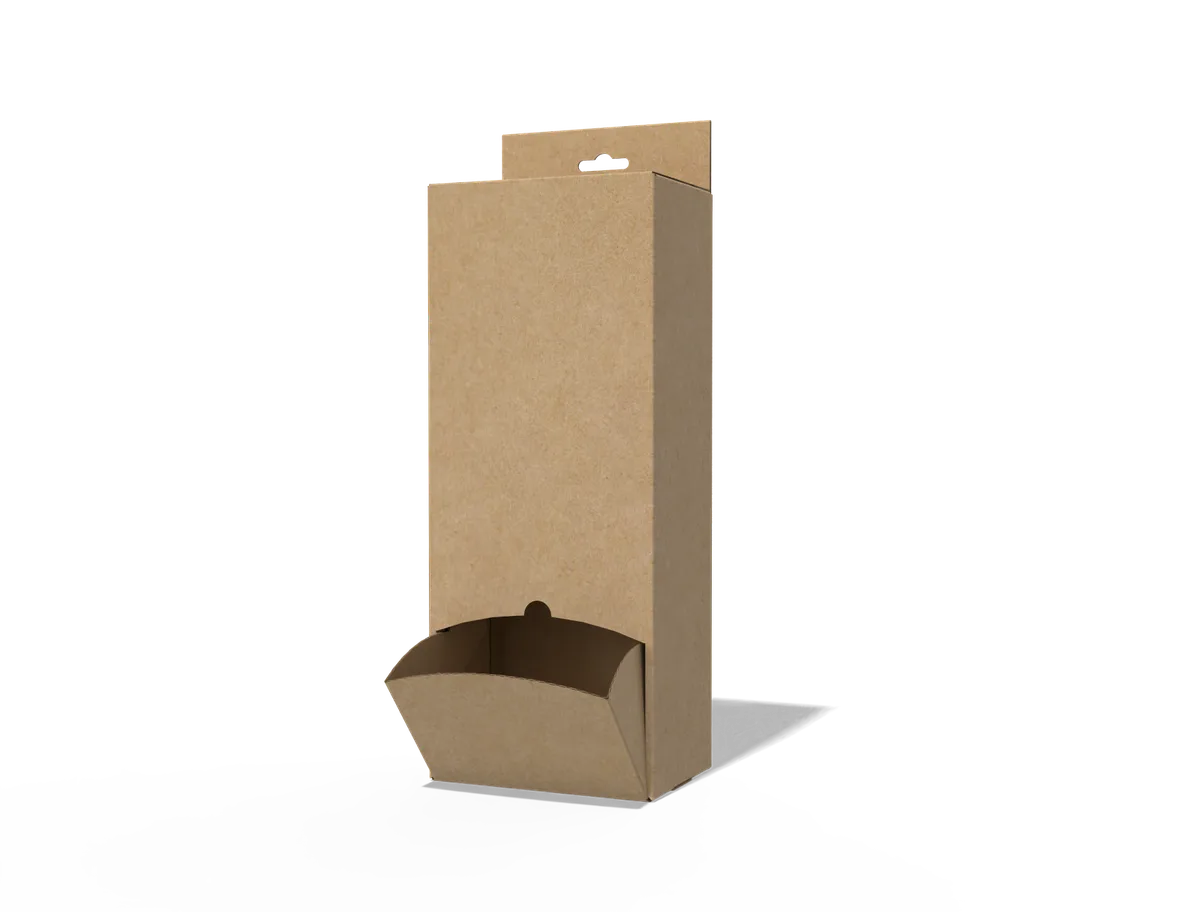

Style reference. Size, materials and printing are customized for your order.
Custom Hanging Product Holders
Use the reference to plan how the product is held and which face carries the main retail message.
- Style reference
- E60964
- Structure
- Retail display
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Confirm the number of units, their packed outlines and which surfaces remain visible when loaded.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
Give the available shelf or counter footprint and overall height, plus product size, unit count and filled weight. Any header or projecting feature is part of the external envelope.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Design the header, product-facing area and support surfaces according to their visibility.
Choose the main viewing surface.
Design the header, product-facing area and support surfaces according to their visibility.
Arrange the secondary information.
Place supporting copy where products, shelves or adjoining packs will not cover it.
- Design the header, product-facing area and support surfaces according to their visibility.
Check the design against the approved layout.
Confirm the number of units, their packed outlines and which surfaces remain visible when loaded.
- Design the header, product-facing area and support surfaces according to their visibility.

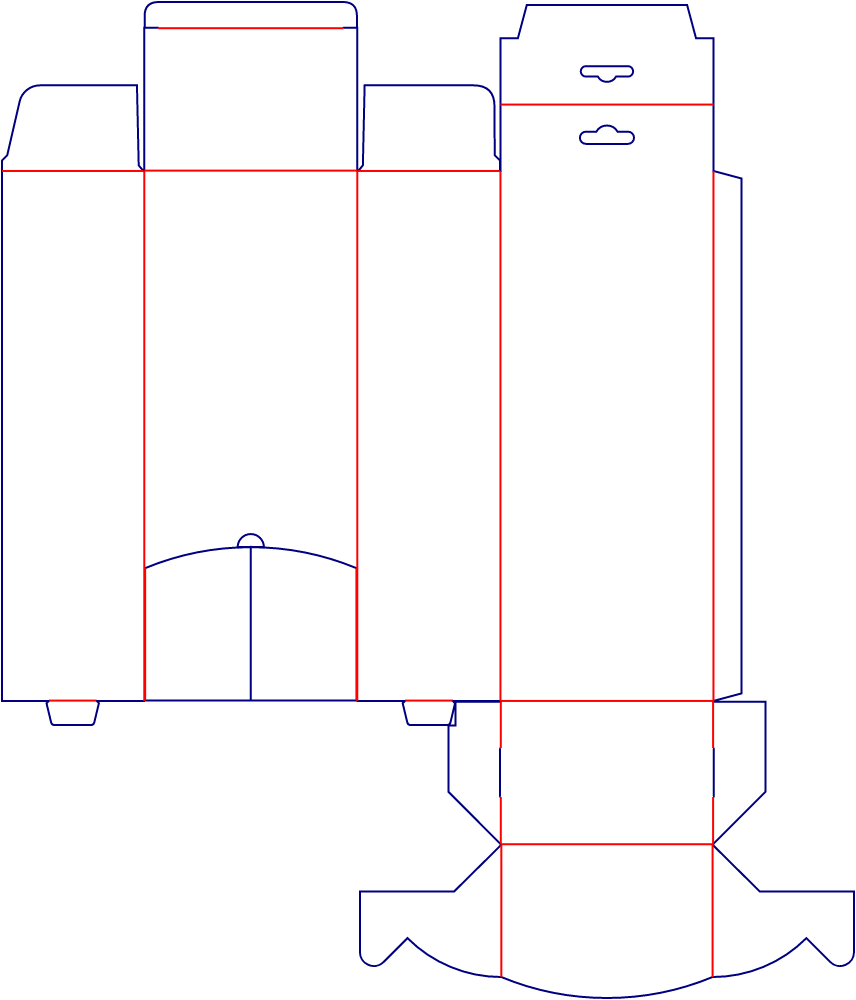

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60964.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
A shared numeric size would not describe all display formats. Use these product arrangements to prepare a footprint and loading brief for the selected structure.
| Product & example size | Sizing brief for the complete display | Material to consider | Selection & fit notes |
|---|---|---|---|
| Small boxed cosmeticsInformation to provide: Individual carton size, quantity and arrangement |
Confirm around the loaded product arrayConfirm for your product | SBS paperboard to discuss | Consider a compact paperboard countertop form only if it suits the loading and weight. |
| Packets or small pouchesInformation to provide: Filled pouch size and preferred facing count |
Confirm footprint, depth and visible heightConfirm for your product | Corrugated board; grade to confirm | Review whether dividers or other support are needed to keep the presentation ordered. |
| Bottles or jars in retail packsInformation to provide: Outside size, filled weight and unit count |
Confirm loaded arrangement and supportConfirm for your product | Corrugated board; grade to confirm | Select the board and structural support using the complete load, not appearance alone. |
| Printed information and sample cardsInformation to provide: Card size, stack thickness and access direction |
Confirm pockets and overall footprintConfirm for your product | SBS paperboard to discuss | Keep the pick-up opening and headline visible at the intended fill level. |
These are illustrative family-level design starting points, not stock sizes or dimensions measured from the reference image. Not every structure supports every example. Confirm the selected structure, material, clearances and final sample before production.
Discuss your size & material
