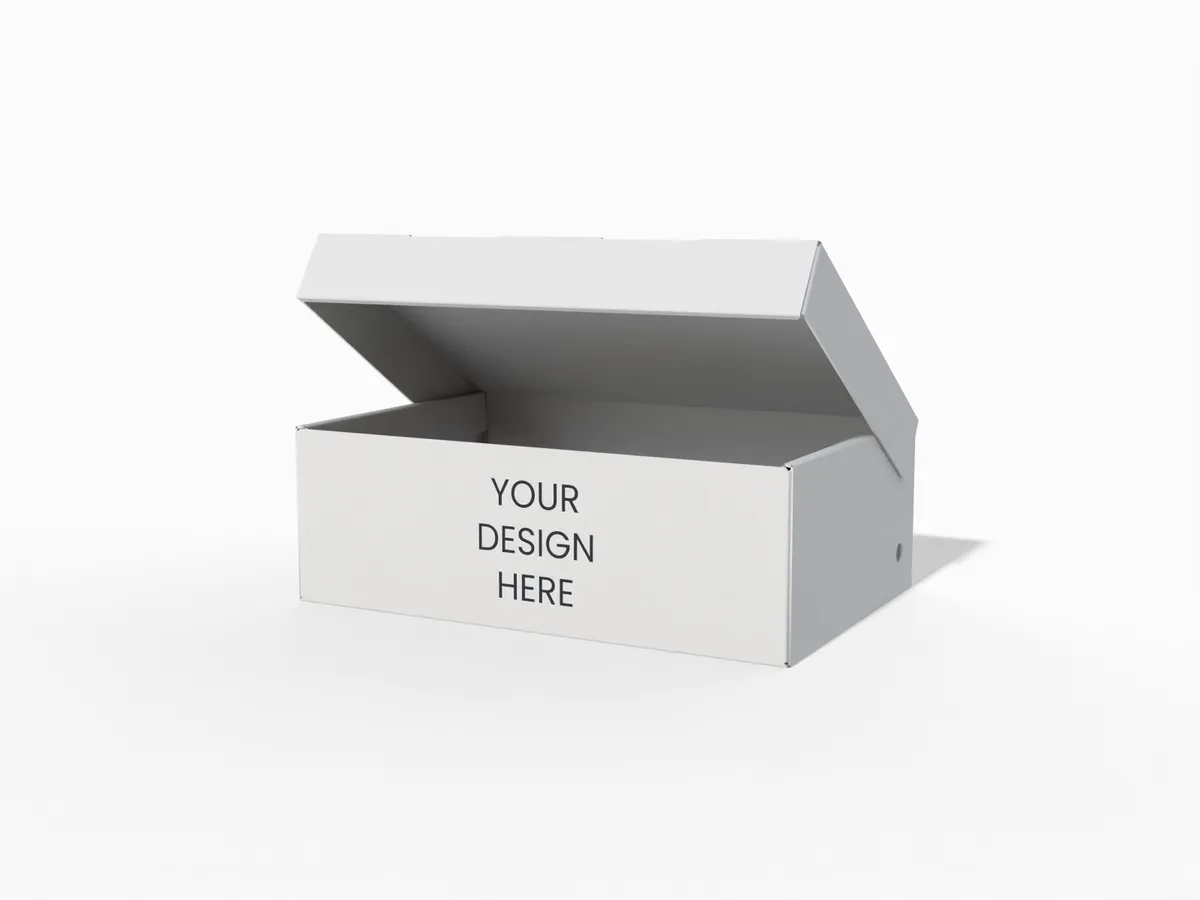

Custom Hinged-Lid Shoe Boxes
A connected lid links the closed presentation to the opening view. Plan artwork on the lid and visible walls as separate surfaces.
- Style reference
- E60443
- Structure
- Hinged-lid box
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Check the lid sweep, closing tabs and wall thickness around the packed contents.
- L
- LengthThe longer side across the usable base.
- W
- WidthThe shorter side across the usable base.
- H
- HeightThe usable depth from the base to the closed top, or the open rim where applicable.
Measure the full packed set. Board thickness, folded walls and any insert reduce usable space; the outside shipping size is a separate measurement.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Check the reading direction on the lid both closed and open.
Choose the main viewing surface.
Check the reading direction on the lid both closed and open.
Arrange the secondary information.
Consider an opening message or supporting details on surfaces that remain visible in the intended assembly.
- Check the reading direction on the lid both closed and open.
Check the design against the approved layout.
Check the lid sweep, closing tabs and wall thickness around the packed contents.
- Check the reading direction on the lid both closed and open.

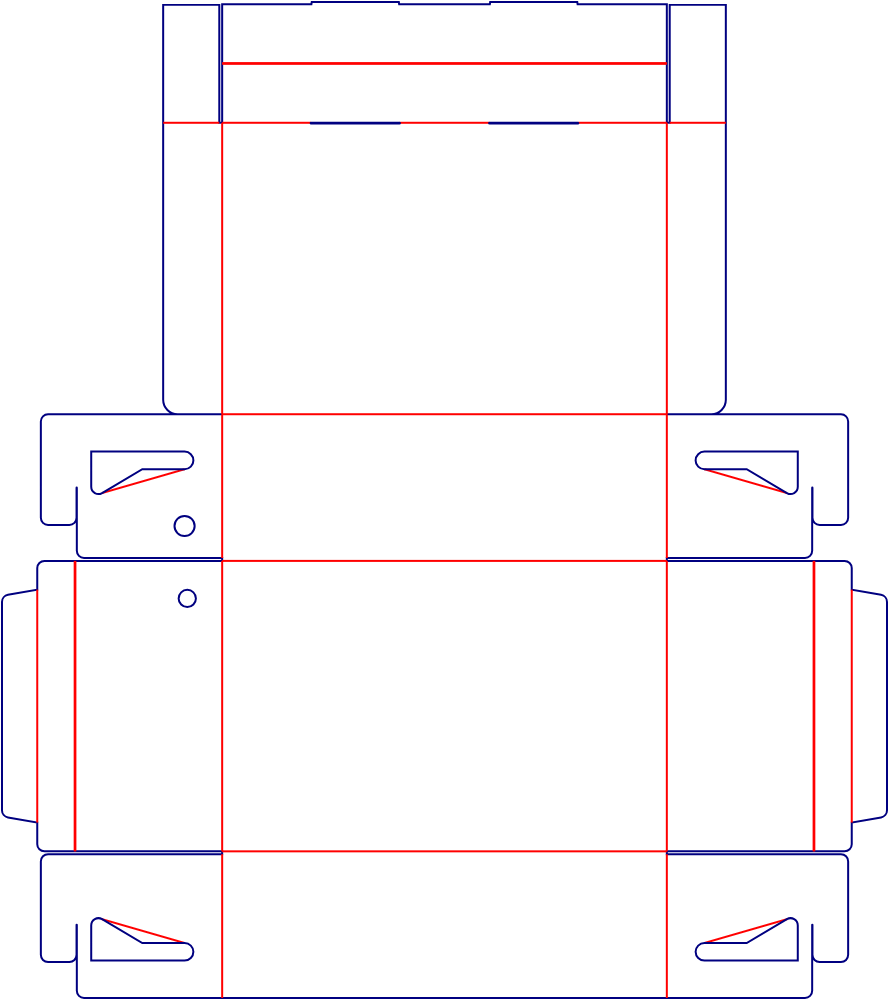

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60443.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Choose a starting format for this product type, then confirm it against your content, use and selected construction.
| Product & example size | Suggested internal shoe-box dimensions | Material to consider | Selection & fit notes |
|---|---|---|---|
| A pair of small children's shoesExample project: Packed pair about 190 × 130 × 65 |
210 × 150 × 85mm · L × W × H | SBS or kraft paperboard; grade and caliper to confirm | Arrange the actual pair with its tissue before choosing the box. |
| A compact pair of adult shoesExample project: Packed pair about 280 × 170 × 90 |
300 × 190 × 110mm · L × W × H | Corrugated board; flute and strength to confirm | Check toe and heel height in the planned packing orientation. |
| A pair of larger trainersExample project: Packed pair about 320 × 200 × 105 |
340 × 220 × 125mm · L × W × H | Corrugated board; flute and strength to confirm | Include tissue, tags and any internal divider. |
| A bulky shoe or ankle-boot pairExample project: Packed pair about 340 × 260 × 130 |
360 × 280 × 150mm · L × W × H | Corrugated board; flute and strength to confirm | Measure every size range and packing arrangement separately. |
These are illustrative design starting points, not stock sizes or measurements of this reference. Confirm material, construction, printing and sample fit before production. These examples describe packed pairs; shoe size alone does not determine the box dimensions.
