Custom Hinged-Lid Window Boxes

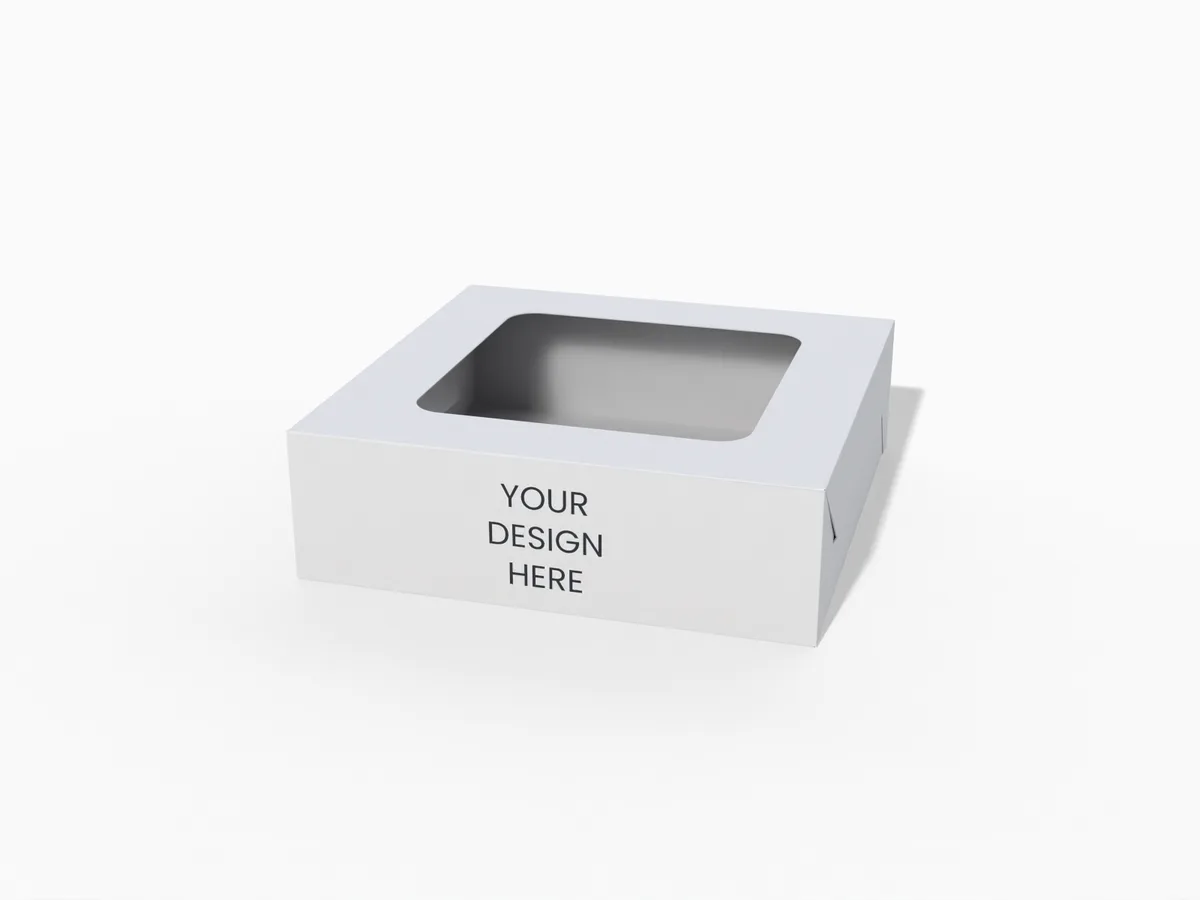

A connected window lid closes over the shallow base. Plan the lid border, visible product and outside walls together.
- Style reference
- E60902
- Structure
- Hinged-lid window box
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Specify the usable closed cavity, lid sweep and product position behind the window; confirm any separate window film.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
State whether measurements describe the contents, usable internal space or outside of the carton. Include caps, wrapping and any insert when checking fit.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep the window opening clear and check the lid artwork in its closed and opened orientations.
Choose the main viewing surface.
Keep the window opening clear and check the lid artwork in its closed and opened orientations.
Arrange the secondary information.
Use other visible surfaces for instructions, ingredients or a short product story, as relevant to the contents.
- Keep the window opening clear and check the lid artwork in its closed and opened orientations.
Check the design against the approved layout.
Specify the usable closed cavity, lid sweep and product position behind the window; confirm any separate window film.
- Keep the window opening clear and check the lid artwork in its closed and opened orientations.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60902.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Measure the packed product and the assembled closed box. The reference includes a closing cover, so open-tray rim dimensions alone do not define fit.
| Product & example size | Usable closed-box cavity; lid and wall clearances specified separately | Material to consider | Selection & fit notes |
|---|---|---|---|
| Packed productInformation to provide: Complete product outline including wrap |
Develop the usable closed cavityConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Check the space occupied by walls and the closing lid. |
| Lid or coverInformation to provide: Lid sweep, tuck detail and overlap |
Confirm the lid movement and closed clearanceConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Review opening access with the product loaded. |
| Window or display openingInformation to provide: Required product view and border |
Specify opening position and size separatelyConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Confirm any film and the surfaces available for print. |
| Insert or linerInformation to provide: Actual outside outline and height |
Confirm fit within the closed boxConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Include the insert when checking the remaining product cavity. |
This is a project-specific sizing brief, not a stock size or a measurement inferred from the reference image. Confirm the selected structure, substrate, clearances and assembled sample before production.
Discuss your size & material
