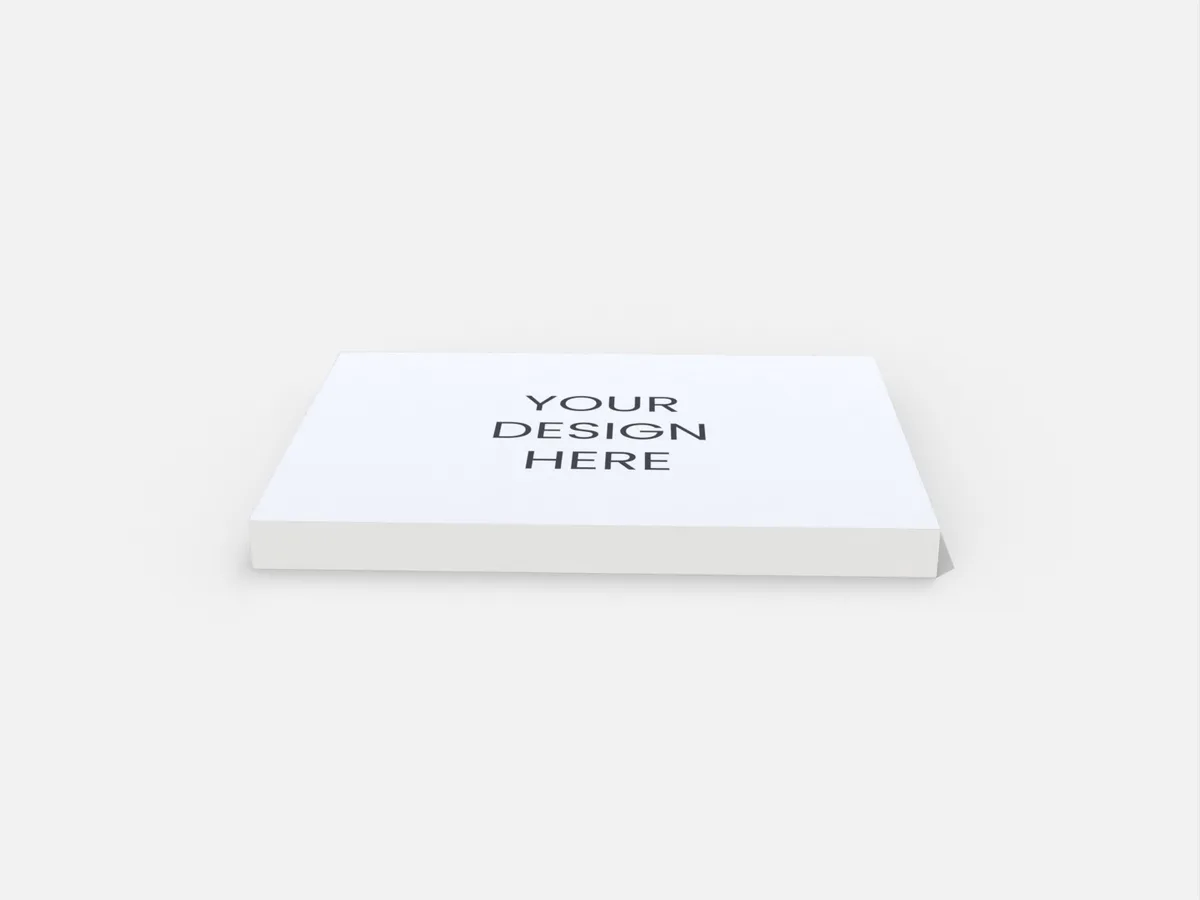

Style reference. Size, materials and printing are customized for your order.

Rigid gift boxes / STYLE E60720

Custom Rigid Sleeve Boxes with Card Inserts

A printed sleeve wraps an existing object or inner pack. Size and orient the artwork around that underlying form. Measure the usable cells or support openings as well as the outer cavity.

Style reference: E60720
Structure: Rigid sleeve box with card inserts
Dimensions: Custom size, confirmed for your product
Material: Wrapped rigid board; wrap and board thickness to confirm

Customize this structure View artwork guide

01 / Get the fit right

Size around your product.

Measure the usable cells or support openings as well as the outer cavity.

Measurement convention · schematic, not to scale

L: Object lengthFirst outside span of the complete object or inner pack that the sleeve wraps.
W: Object widthSecond outside span of the underlying object; confirm the sleeve wrapping direction.
H: Object heightOutside height of the underlying object; the developed flat sleeve dimensions are specified separately.

Measure the wrapped object itself and confirm overlap, substrate thickness and removal clearance.

Add your target size

Measurement basisUnits

Object length (L)Object width (W)Object height (H)

Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.

02 / Plan the visible artwork

Design for the finished product.

Position the logo on the visible face and keep the joining seam away from key text.

Flat dieline template for rigid sleeve boxes with card inserts, style E60720. — Layout reference. Final dimensions and print areas are confirmed with your order.

Main sleeve face.

Position the logo on the visible face and keep the joining seam away from key text.

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.

Request a production dieline

Try your artwork on this reference

Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.

No target size added. Add your dimensions to include them in the preview.

Use the position fields as an alternative to dragging. Values are percentages of this reference image.

Text Or upload your logo

Text colour Rotation 0° Columns Rows

Design size within each tile 75%

Left (%) Top (%) Area width (%) Area height (%)

Include in my inquiry ↗

Loading the reference…

A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.

Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.

03 / Make this structure yours

Request a quote for this style.

Send your dimensions, quantity and artwork requirements for style E60720.

Target size and measurement basis
Quantity, product details and intended use
Logo, artwork and finishing ideas

Explore rigid gift boxes

Need to check it in hand? Explore sample options ↗

04 / A practical starting point

Recommended sizes & materials for common products.

Choose a starting format for this product type, then confirm it against your content, use and selected construction.

Style E60720 · Object or inner-box external dimensions; sleeve fit developed separately · Numeric dimensions in mm (L × W × H).
Product & example size	Object or inner-box external dimensions; sleeve fit developed separately	Material to consider	Selection & fit notes
Small wrapped objectExample object or inner pack: Complete actual object and any inner wrap	Develop sleeve around the stated objectConfirm for your product	Sleeve substrate, thickness and joining method to confirm	Measure the full cross-section, joining area and removal clearance.
Existing inner boxExample object or inner pack: Outside length, width and height of the assembled inner box	Develop sleeve around the stated inner boxConfirm for your product	Sleeve substrate, thickness and joining method to confirm	Do not treat the underlying box dimensions as the developed sleeve trim.
Food container sleeveExample object or inner pack: Complete closed container and any lid projection	Develop sleeve around the stated containerConfirm for your product	Sleeve substrate, thickness and intended use to confirm	Confirm the wrapping direction, overlap and access to the underlying container.
Grouped inner packExample object or inner pack: Full arrangement in its actual inner pack	Develop sleeve around the complete arrangementConfirm for your product	Sleeve substrate, thickness and joining method to confirm	Check that the sleeve holds and releases the intended complete pack.

These are illustrative design starting points, not stock sizes or measurements of this reference. Confirm material, construction, printing and sample fit before production. The three values describe the underlying object; specify the flat band width, developed length, join and clearance separately. A sliding drawer is not assumed.

Discuss your size & material
