Custom Hinged Rigid Gift Boxes
A rigid inner tray sits inside a hinged outer cover. Plan the cover, the inside presentation and any fitted insert before placing your artwork.
- Style reference
- E60006
- Structure
- Hinged outer cover · separate inner tray
- Dimensions
- Custom size, confirmed for your product
- Material
- Rigid white board and paper-wrap appearance shown; board, wrap and closure specification to confirm
Size around your product.
Define the usable tray cavity first, then specify the outer cover and closure.
- L
- LengthThe horizontal span across the assembled front face.
- W
- WidthThe front-to-back depth of the assembled box.
- H
- HeightThe vertical distance from the base to the closed top.
Rigid board, the wrap and any insert all affect clearance. Closure hardware is confirmed separately.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
The reference layout contains separate cover, tray and wrap pieces. Artwork needs to be assigned to the correct piece and print surface before production.
Keep the cover identity clear.
Place the primary logo on the top cover, with supporting artwork on the spine and closure section.
- Allow for wrap turn-ins at the edges.
- Check the cover direction with the box closed.
Use the opening moment deliberately.
An inner-lid message should read upright when the lid is open in front of the customer.
- Separate inner-lid and exterior files.
- Check the message against the position of the tray.
Design the visible interior as a set.
Coordinate the tray lining with the insert and product. A fitted insert is a separate component.
- Mark wrap seams and concealed areas.
- Confirm which surfaces remain visible with contents in place.

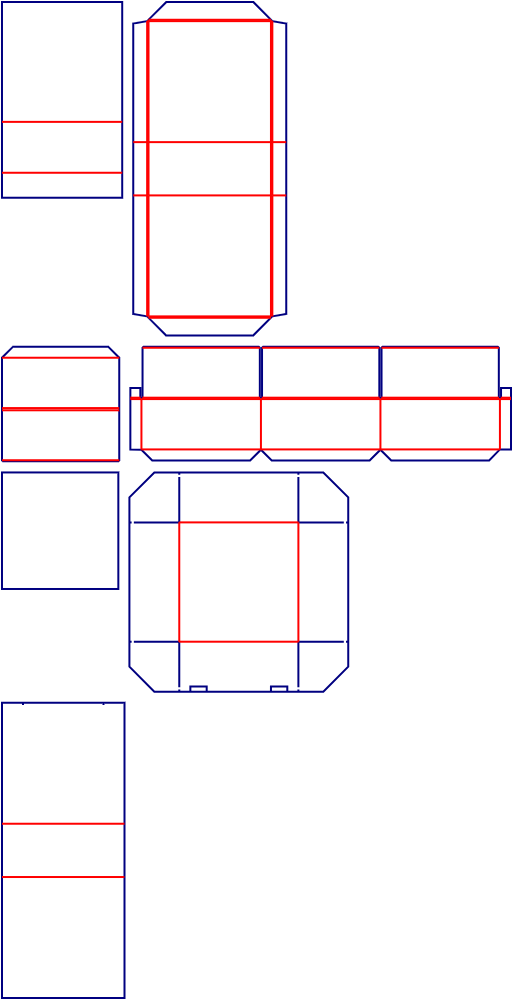

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60006.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Choose a cavity for the wrapped contents, then develop the insert, cover and closure around it.
| Product & example size | Suggested inner tray usable dimensions | Material to consider | Selection & fit notes |
|---|---|---|---|
| A jewellery box and pouchExample packed product: 80 × 80 × 35 mm |
110 × 110 × 55mm · L × W × H | Greyboard with a printed paper wrap | Reserve space to develop a fitted presentation insert. |
| A small cosmetic gift setExample packed product: 160 × 120 × 45 mm |
190 × 150 × 70mm · L × W × H | Greyboard with a printed paper wrap | Check the complete set and product removal space. |
| A scarf and card setExample packed product: 210 × 170 × 40 mm |
235 × 195 × 60mm · L × W × H | Greyboard with a specialty paper wrap | Coordinate the wrap texture with the tissue and inner card. |
| A premium stationery setExample packed product: 220 × 180 × 35 mm |
250 × 210 × 55mm · L × W × H | Greyboard with a printed paper wrap | Room to arrange the notebook, pen and a separate insert. |
These are illustrative design starting points, not fixed stock sizes or confirmed production specifications. Example product dimensions include the planned wrapping. Confirm the complete pack, material grade and fit with a sample.
