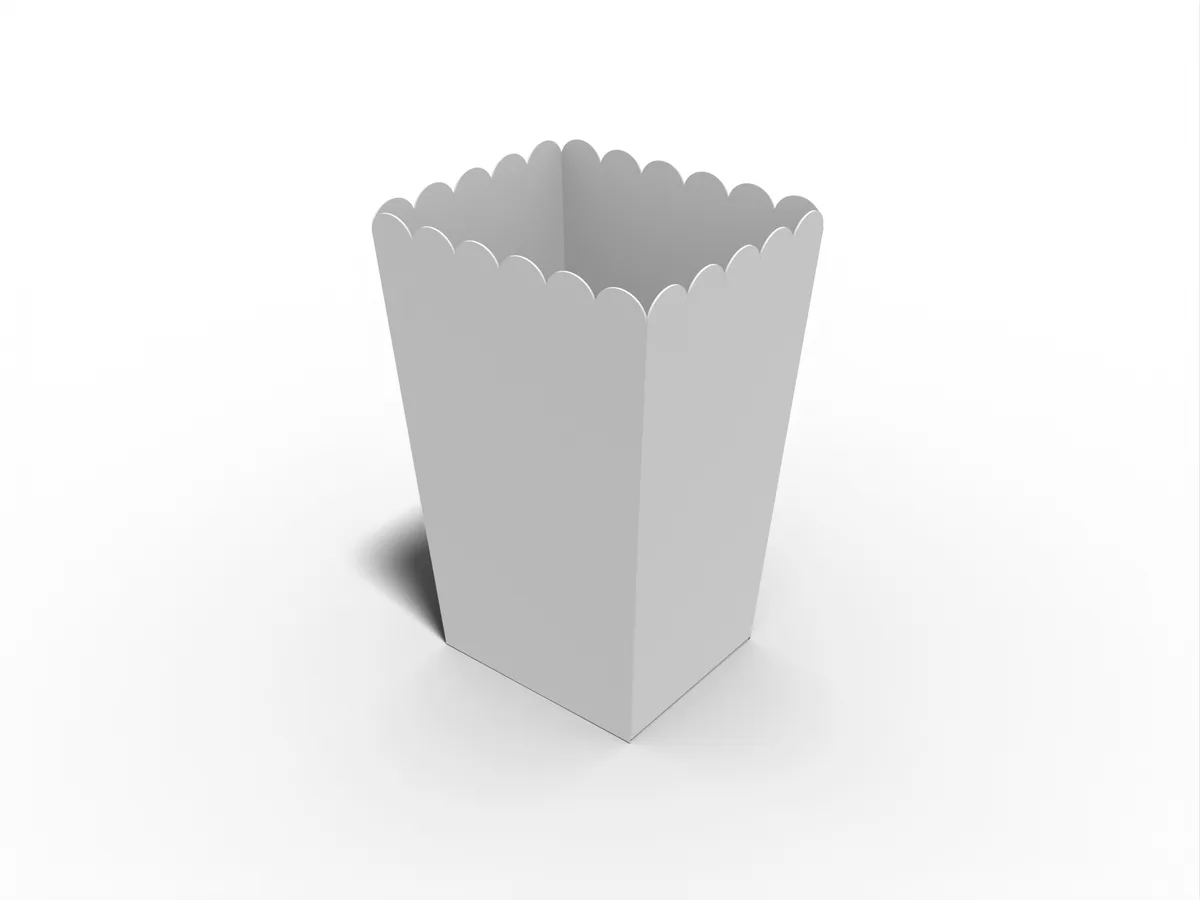

Style reference. Size, materials and printing are customized for your order.
Custom Tapered Open-Top Cartons with Scalloped Rims
The open scalloped rim and taper define the presentation. Plan the body artwork around the changing width from the base to the opening.
- Style reference
- E60245
- Structure
- Tapered open-top carton with scalloped rim
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Specify the usable base, top opening and body height separately; check the packed outline at the narrowest part.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
State whether measurements describe the contents, usable internal space or outside of the carton. Include caps, wrapping and any insert when checking fit.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep key text below the scalloped rim and review the tapered faces in the assembled orientation.
Choose the main viewing surface.
Keep key text below the scalloped rim and review the tapered faces in the assembled orientation.
Arrange the secondary information.
Use other visible surfaces for instructions, ingredients or a short product story, as relevant to the contents.
- Keep key text below the scalloped rim and review the tapered faces in the assembled orientation.
Check the design against the approved layout.
Specify the usable base, top opening and body height separately; check the packed outline at the narrowest part.
- Keep key text below the scalloped rim and review the tapered faces in the assembled orientation.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60245.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
This tapered reference has an open scalloped rim. Measure the packed item and specify the base and top opening separately; there is no upper closing-flap allowance.
| Product & example size | Open-top carton base, rim and height specified separately | Material to consider | Selection & fit notes |
|---|---|---|---|
| Packed itemInformation to provide: Complete packed outline and intended presentation |
Develop the usable lower cavityConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Check the product profile at the narrowest point. |
| Base footprintInformation to provide: Usable base width and depth |
Specify base dimensions separatelyConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Folded base flaps reduce the usable area. |
| Top openingInformation to provide: Required rim width and depth |
Specify the top opening separatelyConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Taper means the base and rim have different cross-sections. |
| Height and rimInformation to provide: Body height and full scalloped outline |
Confirm usable height and overall outlineConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Keep essential print clear of the scalloped cut edge. |
This is a project-specific sizing brief, not a stock size or a measurement inferred from the reference image. Confirm the selected structure, substrate, clearances and assembled sample before production.
Discuss your size & material
