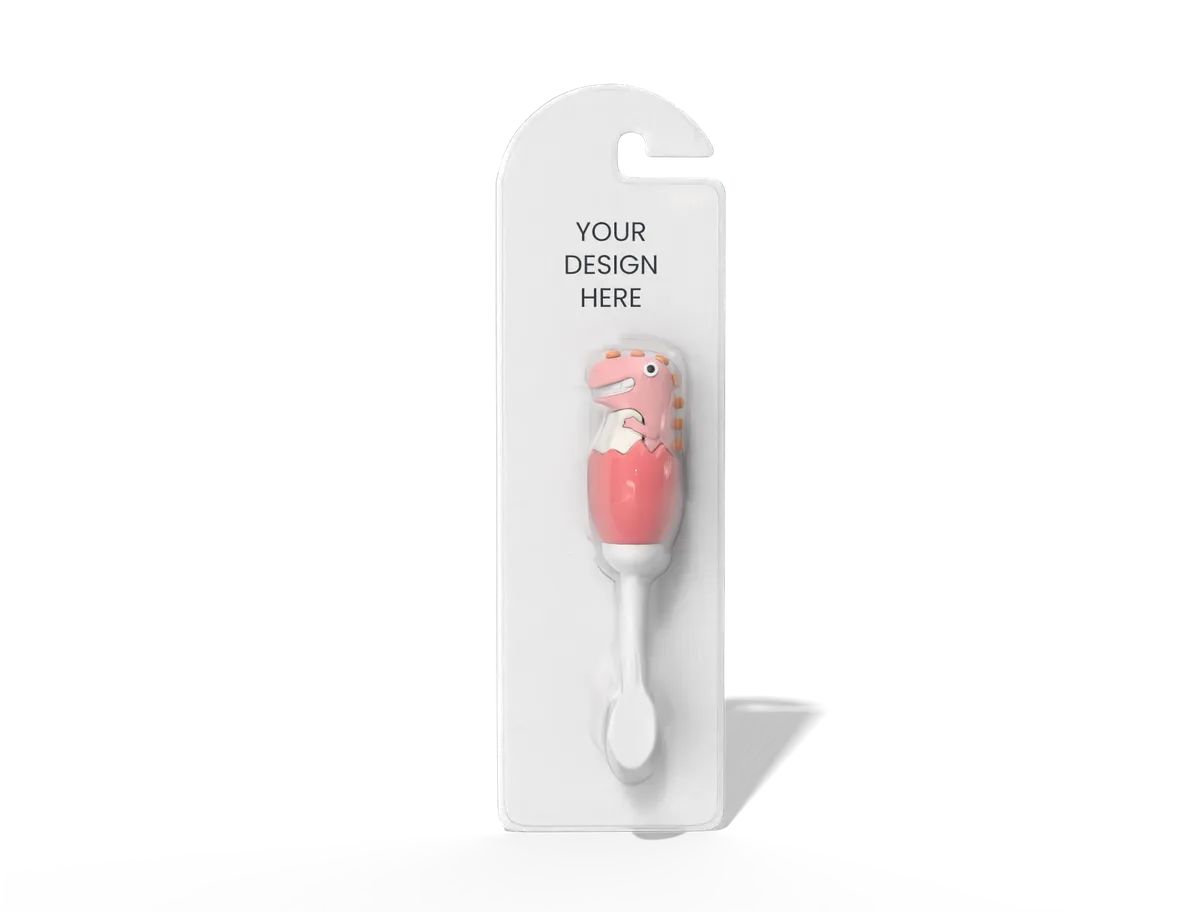

Style reference. Size, materials and printing are customized for your order.
Custom Toothbrush Blister Packaging
Plan the backing or sealing sheet together with the shaped product cavity.
- Style reference
- E61859
- Structure
- Blister packaging
- Dimensions
- Custom size, confirmed for your product
- Material
- Plastic substrate; resin, wall thickness and intended use to confirm
Size around your product.
Supply the backing width and height, cavity depth and the actual product outline.
- W
- Backing widthWidth of the complete backing or sealing sheet.
- H
- Backing heightHeight of the complete backing or sealing sheet.
- T
- Cavity depthMaximum formed depth needed by the product; confirm sealing and support areas separately.
Supply the backing width and height, cavity depth and the actual product outline.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Reserve the sealing area and keep key text off cavities or punched openings.
Backing artwork.
Reserve the sealing area and keep key text off cavities or punched openings.
Product cavity.
Keep the product cavity and its clear viewing area separate from the printed backing artwork.
- Reserve the sealing area and keep key text off cavities or punched openings.
Sealing & hanging.
Supply the backing width and height, cavity depth and the actual product outline.
- Reserve the sealing area and keep key text off cavities or punched openings.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E61859.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Choose a starting format for this product type, then confirm it against your content, use and selected construction.
| Product & example size | Suggested backing or sealing-sheet trim; cavity depth separate | Material to consider | Selection & fit notes |
|---|---|---|---|
| Slim retail productExample project: Product outline plus support points |
50 × 180; cavity to confirmConfirm for your product | Plastic substrate; resin, wall thickness and intended use to confirm | Keep the product cavity and sealing margin separate. |
| Medium retail productExample project: Product and any included accessories |
80 × 160; cavity to confirmConfirm for your product | Plastic substrate; resin, wall thickness and intended use to confirm | Review cavity depth and backing stiffness together. |
| Multi-part productExample project: Complete layout of the parts |
120 × 180; cavity to confirmConfirm for your product | Plastic substrate; resin, wall thickness and intended use to confirm | Check separate cavities and readable backing information. |
| Small portion or tablet formatExample project: Cavity count and actual product outline |
70 × 100; cavity to confirmConfirm for your product | Plastic substrate; resin, wall thickness and intended use to confirm | Confirm sealing method and the intended use of the filled package. |
These are illustrative design starting points, not stock sizes or measurements of this reference. Confirm material, construction, printing and sample fit before production.
Discuss your size & material
