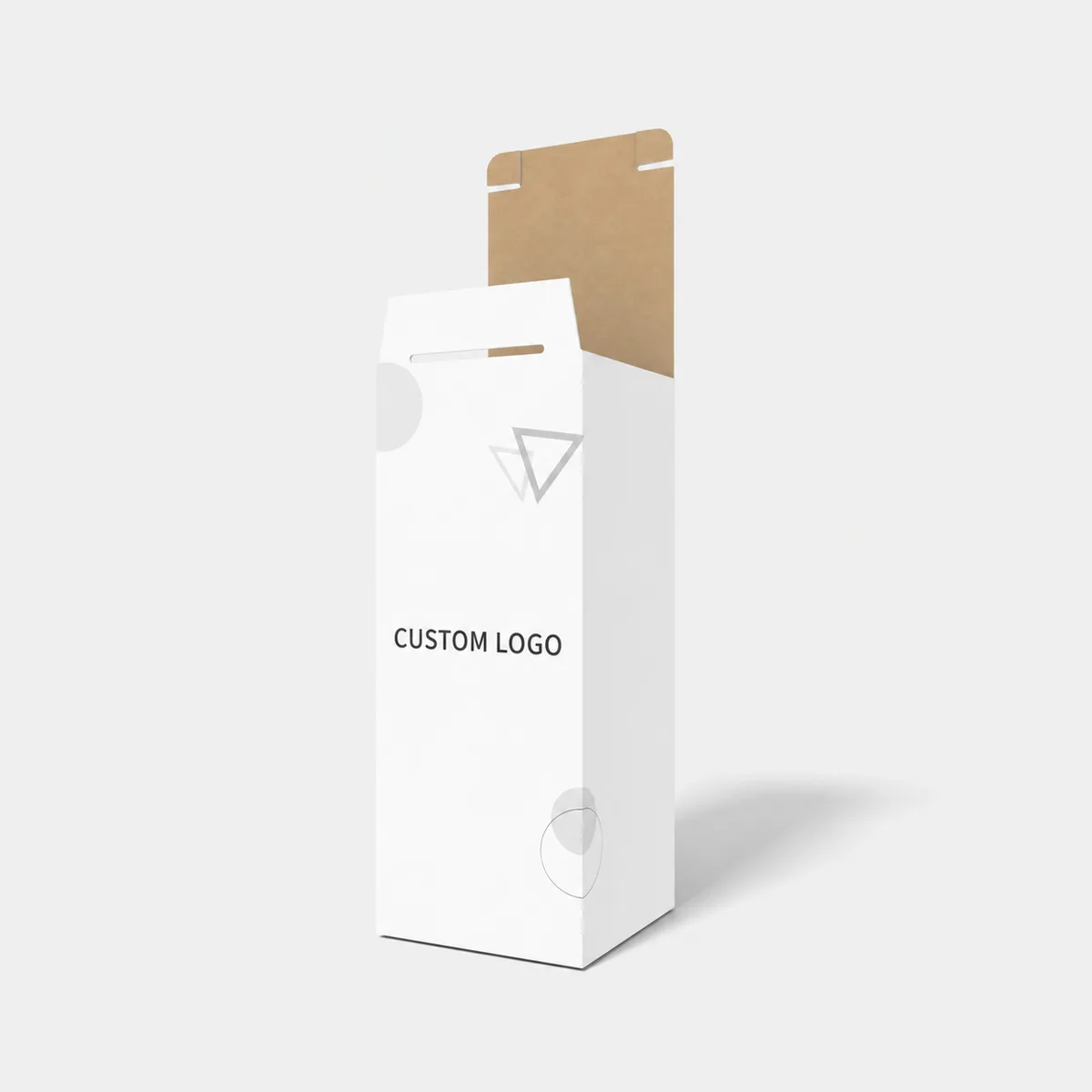

Style reference. Size, materials and printing are customized for your order.
Custom Tuck-End Bottle Cartons
A tuck closure provides access through a carton end. Decide which end is opened first and which body panel faces the customer.
- Style reference
- E60066
- Structure
- Tuck-end carton
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Include closure clearance at the top and bottom of the packed product.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
State whether measurements describe the contents, usable internal space or outside of the carton. Include caps, wrapping and any insert when checking fit.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Orient end-flap artwork for the direction in which that flap closes.
Choose the main viewing surface.
Orient end-flap artwork for the direction in which that flap closes.
Arrange the secondary information.
Use other visible surfaces for instructions, ingredients or a short product story, as relevant to the contents.
- Orient end-flap artwork for the direction in which that flap closes.
Check the design against the approved layout.
Include closure clearance at the top and bottom of the packed product.
- Orient end-flap artwork for the direction in which that flap closes.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60066.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Choose a starting format for this product type, then confirm it against your content, use and selected construction.
| Product & example size | Suggested internal bottle envelope | Material to consider | Selection & fit notes |
|---|---|---|---|
| One slender bottleExample project: Wrapped bottle up to about 70 × 70 × 300 |
85 × 85 × 320mm · L × W × H | SBS or kraft paperboard; grade and caliper to confirm | Include the closure and any neck/base support in the fit check. |
| One wider bottleExample project: Wrapped bottle up to about 85 × 85 × 310 |
100 × 100 × 330mm · L × W × H | SBS or kraft paperboard; grade and caliper to confirm | Measure the widest body point and the actual closed height. |
| One tall bottleExample project: Wrapped bottle up to about 90 × 90 × 335 |
105 × 105 × 355mm · L × W × H | SBS or kraft paperboard; grade and caliper to confirm | Check the top closing clearance and support at the base. |
| A bottle with a separate support insertExample project: Bottle profile plus the complete support arrangement |
Develop the carton around the insert and bottleConfirm for your product | Corrugated board; flute and strength to confirm | The insert and board grade must be reviewed for the actual filled weight. |
These are illustrative design starting points, not stock sizes or measurements of this reference. Confirm material, construction, printing and sample fit before production. These are bottle-envelope examples, not universal bottle or shipping specifications. The reference does not establish the beverage type.
