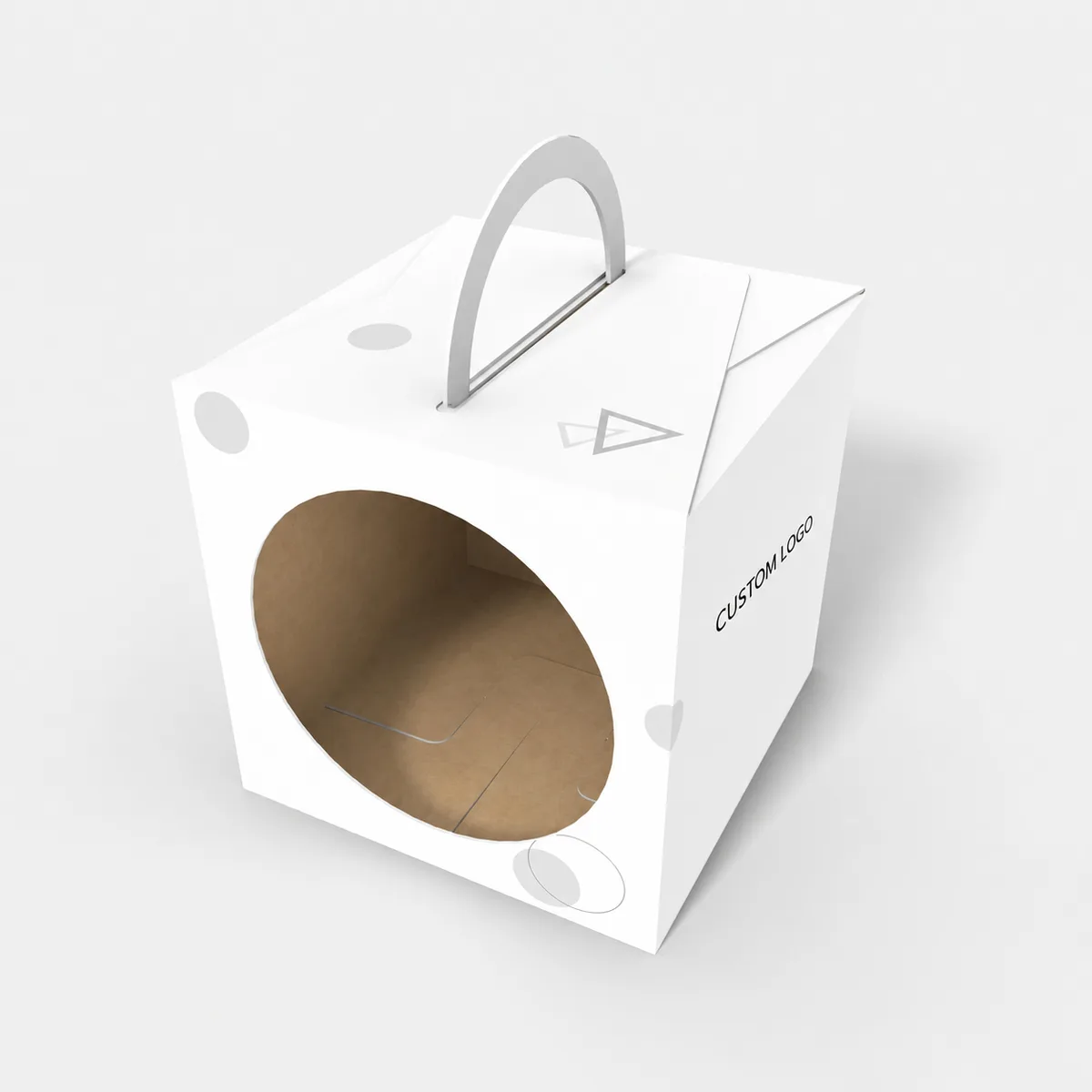

Style reference. Size, materials and printing are customized for your order.
Custom Window Tuck-End Cake Cartons
A display opening makes the visible product part of the front design. Plan the printed border around that opening. Check the product view through the opening before positioning the logo.
- Style reference
- E60330
- Structure
- Window carton · display opening
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Check the product position behind the opening and whether a separate window film is required.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
State whether measurements describe the contents, usable internal space or outside of the carton. Include caps, wrapping and any insert when checking fit.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep small text off the window opening and check the view with the product inserted.
Choose the main viewing surface.
Keep small text off the window opening and check the view with the product inserted.
Arrange the secondary information.
Check the product view through the opening before positioning the logo.
Check the design against the approved layout.
Check the product position behind the opening and whether a separate window film is required.
- Keep small text off the window opening and check the view with the product inserted.

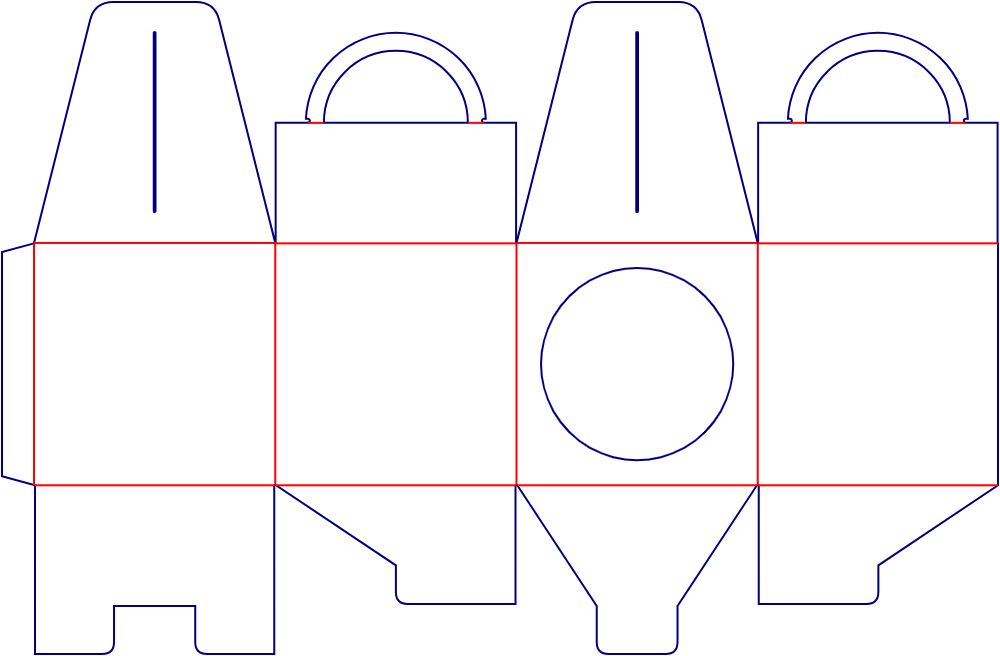

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60330.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Choose a starting format for this product type, then confirm it against your content, use and selected construction.
| Product & example size | Suggested usable bakery-product envelope | Material to consider | Selection & fit notes |
|---|---|---|---|
| Small individually wrapped baked goodsExample food plus board or inner wrap: 120 × 90 × 50 mm |
140 × 110 × 70mm · L × W × H | Paperboard with the liner or barrier selected for the actual food use | Measure the full food, board and inner wrap; confirm headroom and the viewing-window position where present. |
| A small cake on its boardExample food plus board or inner wrap: 170 × 170 × 90 mm |
190 × 190 × 110mm · L × W × H | Paperboard with the liner or barrier selected for the actual food use | Measure the full food, board and inner wrap; confirm headroom and the viewing-window position where present. |
| A medium cake on its boardExample food plus board or inner wrap: 220 × 220 × 120 mm |
240 × 240 × 140mm · L × W × H | Paperboard with the liner or barrier selected for the actual food use | Measure the full food, board and inner wrap; confirm headroom and the viewing-window position where present. |
| An arranged pastry selectionExample food plus board or inner wrap: 240 × 160 × 70 mm |
260 × 180 × 90mm · L × W × H | Paperboard with the liner or barrier selected for the actual food use | Measure the full food, board and inner wrap; confirm headroom and the viewing-window position where present. |
These are illustrative design starting points, not stock sizes or measurements of this reference. Confirm material, construction, printing and sample fit before production. Confirm food-contact suitability, service conditions and the complete packing method separately.
