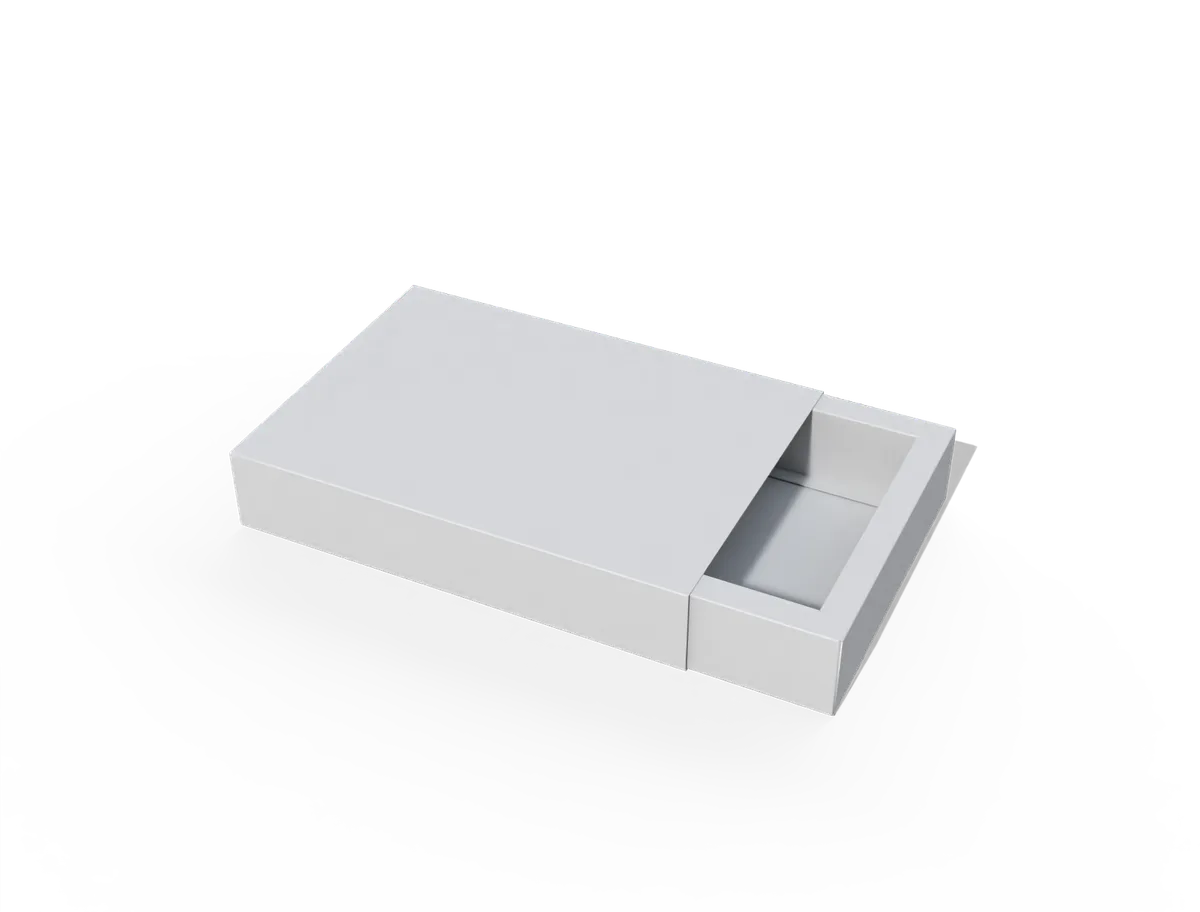

Reference rendering of this structure. Artwork, material and final dimensions are confirmed for your project.
Custom Drawer Boxes
A folded tray slides inside a separate sleeve. Plan the sliding fit, opening direction and the artwork that appears as the tray is pulled out.
- Style reference
- E60007
- Structure
- Separate sleeve · folded sliding tray
- Dimensions
- Custom size, confirmed for your product
- Material
- White paperboard appearance shown; board grade and thickness to confirm
Size around your product.
Measure the usable tray cavity, then establish clearance between the folded tray and sleeve.
- L
- LengthThe longer side of the usable base.
- W
- WidthThe front-to-back span across the usable base.
- H
- HeightThe usable depth above the base when closed.
The sleeve dimensions differ from the tray cavity. Include board thickness, folds and the desired sliding clearance.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.

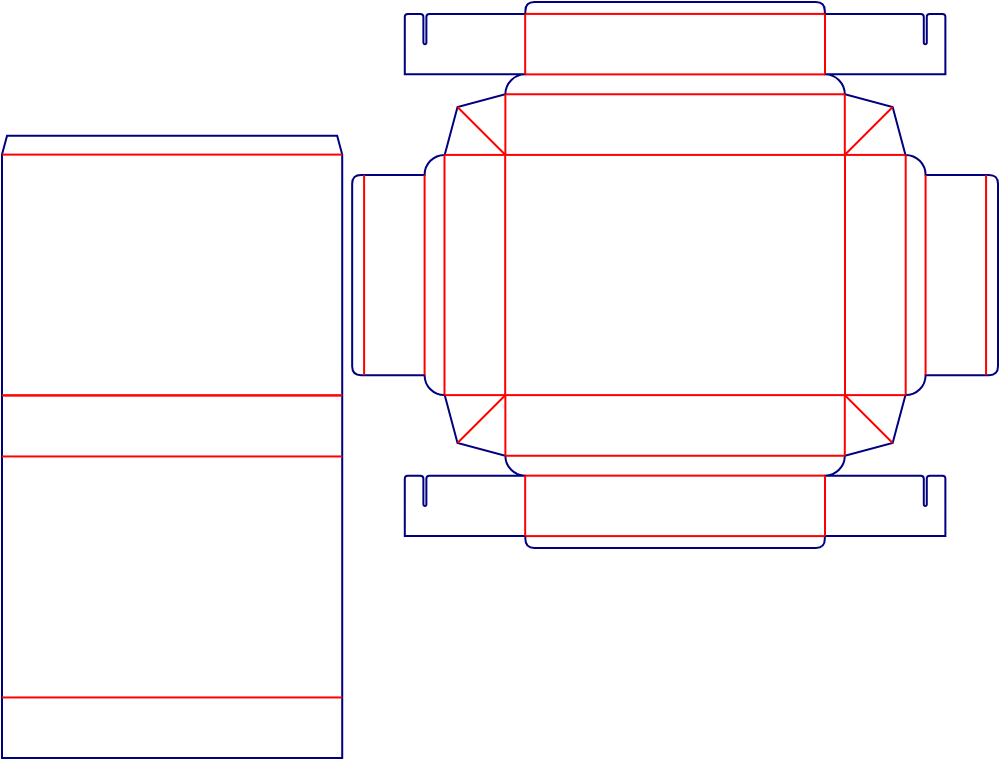

The left dieline forms the sleeve; the right dieline forms the folded tray. Treat them as two artwork components.
Put the main artwork on the broad sleeve face.
Use the sleeve top for the primary logo or image and plan any pattern around its side folds.
- Keep the glue seam clear of critical content.
- Check the top face relative to the slide direction.
Add a message at the opening.
The exposed tray end can hold a short secondary message when there is sufficient visible space.
- Keep text clear of folded corners.
- Check readability with the tray fully closed.
Plan what is revealed after opening.
Place optional interior artwork where the product or an insert will not hide it.
- Keep inside printing separate from the exterior artwork.
- Check the arrangement with the contents loaded.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60007.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Start with the wrapped contents and use a folded sample to develop the sleeve fit.
| Product & example size | Suggested tray internal dimensions | Material to consider | Selection & fit notes |
|---|---|---|---|
| A jewellery pouchExample packed product: 70 × 60 × 20 mm |
90 × 80 × 30mm · L × W × H | SBS white paperboard | Room for the pouch and removal space inside the tray. |
| A set of small cardsExample packed product: 90 × 60 × 20 mm |
105 × 75 × 30mm · L × W × H | Kraft paperboard | A compact tray with a kraft sleeve surface. |
| A wrapped accessoryExample packed product: 140 × 90 × 25 mm |
160 × 110 × 40mm · L × W × H | SBS white paperboard | A broad sleeve face for the product name and image. |
| A small stationery gift setExample packed product: 180 × 120 × 30 mm |
205 × 145 × 45mm · L × W × H | SBS white paperboard | Check the entire set and any separate insert. |
These are illustrative design starting points, not fixed stock sizes or confirmed production specifications. Example product dimensions include the planned wrapping. Confirm the complete pack, material grade and fit with a sample. The size of the sleeve cannot be copied directly from the tray's internal dimensions.
Discuss your size & material
