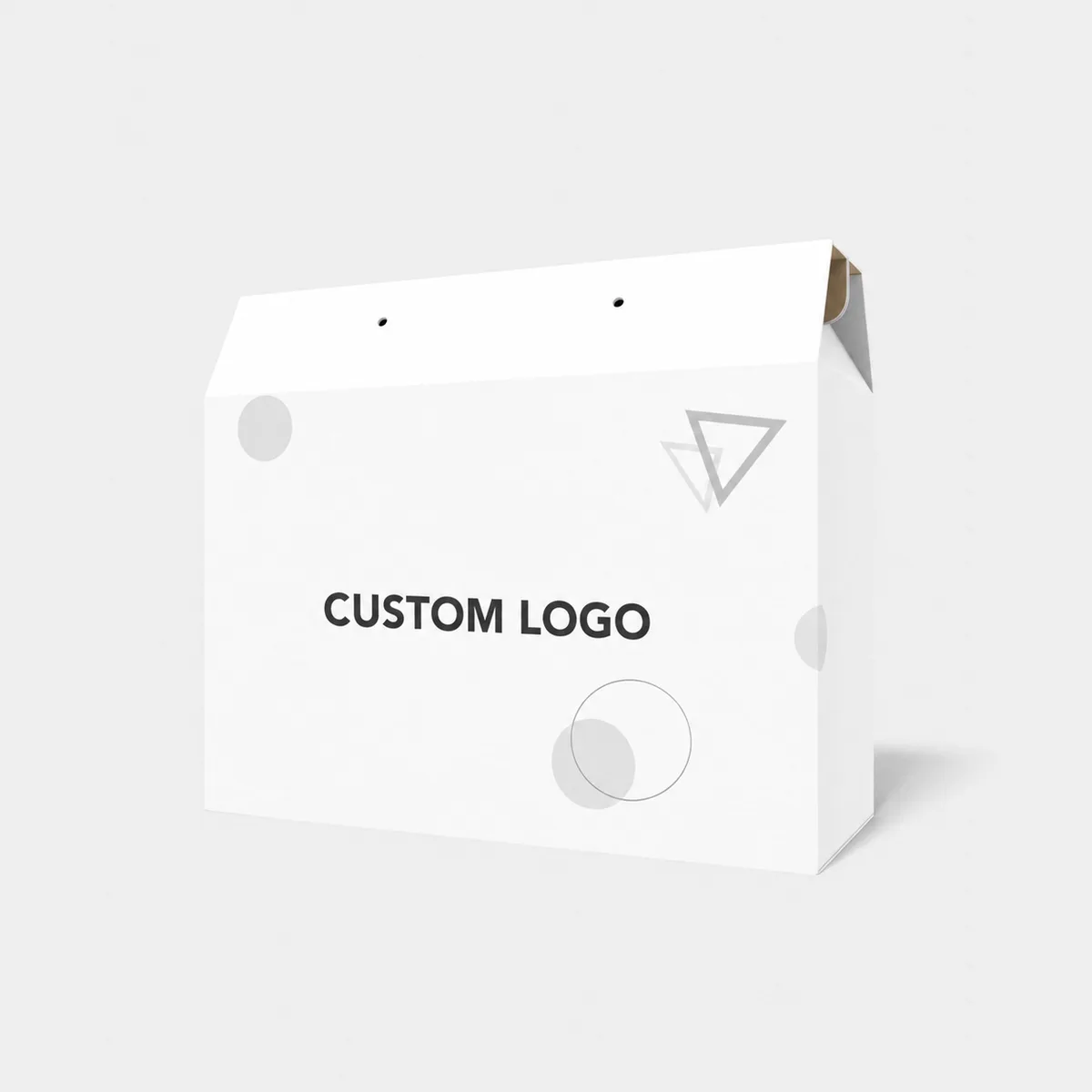

Style reference. Size, materials and printing are customized for your order.
Custom Gable Boxes with Locking Bases
The pitched top is part of the opening and presentation. Plan the main body print separately from the sloping closure. Separate usable body height from the space occupied by the gable and any handle.
- Style reference
- E60827
- Structure
- Gable box with locking bases
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Separate usable body height from the space occupied by the gable and any handle.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
Separate usable body height from overall height including a handle or shaped top. Include the carried weight in the brief; a size alone does not establish carrying strength.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Check pattern joins at the sloping top folds and keep closure slots clear.
Choose the main viewing surface.
Check pattern joins at the sloping top folds and keep closure slots clear.
Arrange the secondary information.
Arrange secondary information where it can be read while the pack is standing.
- Check pattern joins at the sloping top folds and keep closure slots clear.
Check the design against the approved layout.
Separate usable body height from the space occupied by the gable and any handle.
- Check pattern joins at the sloping top folds and keep closure slots clear.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60827.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
These examples exclude extra height required by a handle or roof-shaped closure. Confirm the filled weight and intended carrying method.
| Product & example size | Suggested usable body dimensions | Material to consider | Selection & fit notes |
|---|---|---|---|
| Wrapped party favoursExample packed product: 100 × 70 × 70 mm |
120 × 90 × 90mm · L × W × H | SBS paperboard to discuss | Check the complete favour set and the top closure clearance. |
| Small wrapped gift itemsExample packed product: 140 × 90 × 80 mm |
160 × 110 × 100mm · L × W × H | Kraft paper or paperboard to discuss | Discuss the handle and board construction for the intended filled weight. |
| A lightweight retail kitExample packed product: 180 × 120 × 100 mm |
200 × 140 × 120mm · L × W × H | Corrugated board; grade to confirm | Review the lift points and packed balance with a physical sample. |
| Individually packaged snack giftsExample packed product: 160 × 100 × 90 mm |
180 × 120 × 110mm · L × W × H | SBS paperboard to discuss | The example assumes packaged contents; specify any direct-contact requirements separately. |
These are illustrative family-level design starting points, not stock sizes or dimensions measured from the reference image. Not every structure supports every example. Confirm the selected structure, material, clearances and final sample before production.
Discuss your size & material
