Custom Hinged-Lid Boxes

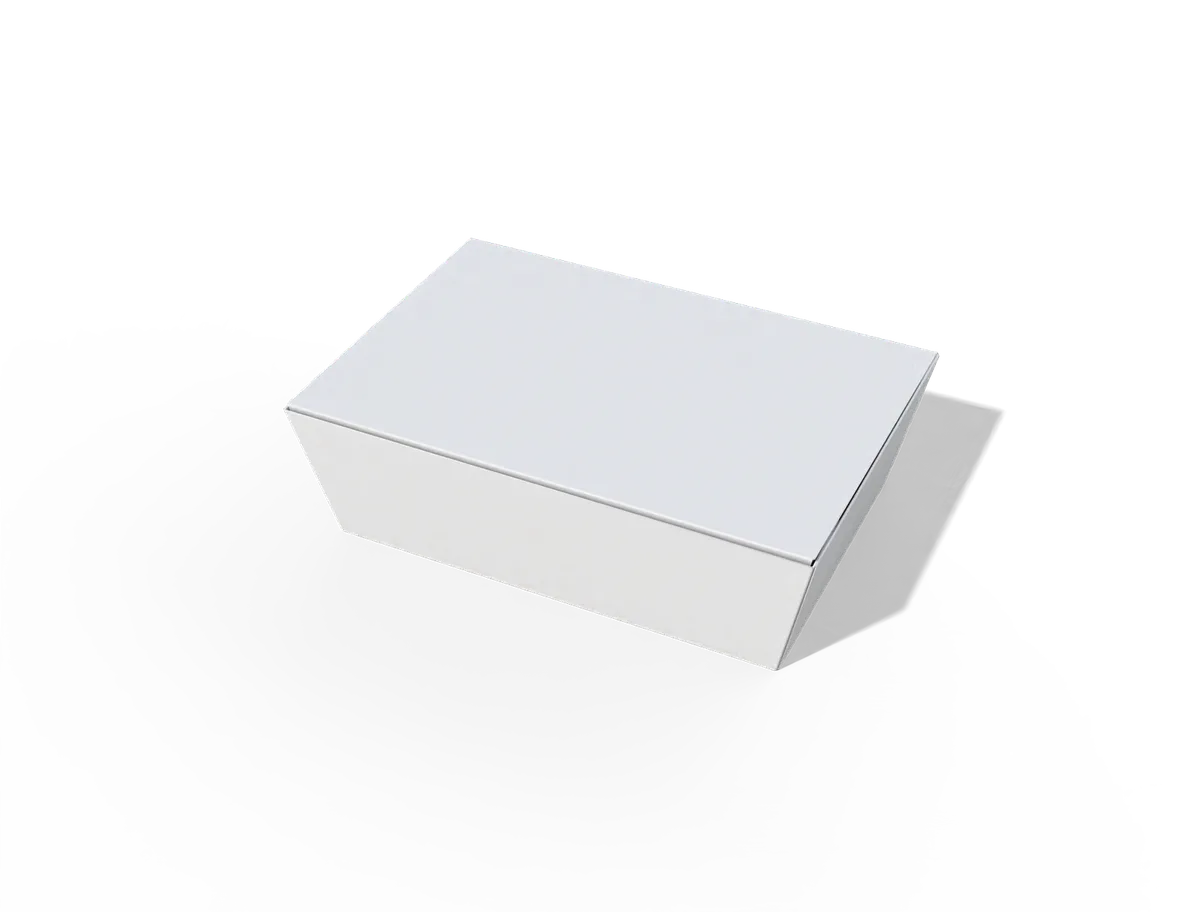

A connected lid links the closed presentation to the opening view. Plan artwork on the lid and visible walls as separate surfaces.
- Style reference
- E60557
- Structure
- Hinged-lid box
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Check the lid sweep, closing tabs and wall thickness around the packed contents.
- L
- LengthThe longer side across the usable base.
- W
- WidthThe shorter side across the usable base.
- H
- HeightThe usable depth from the base to the closed top, or the open rim where applicable.
Measure the full packed set. Board thickness, folded walls and any insert reduce usable space; the outside shipping size is a separate measurement.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Check the reading direction on the lid both closed and open.
Choose the main viewing surface.
Check the reading direction on the lid both closed and open.
Arrange the secondary information.
Consider an opening message or supporting details on surfaces that remain visible in the intended assembly.
- Check the reading direction on the lid both closed and open.
Check the design against the approved layout.
Check the lid sweep, closing tabs and wall thickness around the packed contents.
- Check the reading direction on the lid both closed and open.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60557.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Start with the complete wrapped product or set. These examples are sizing prompts for a suitable box construction.
| Product & example size | Suggested usable internal dimensions | Material to consider | Selection & fit notes |
|---|---|---|---|
| Greeting cards and a paper bandExample packed product: 160 × 120 × 25 mm |
180 × 140 × 40mm · L × W × H | Corrugated board; grade to confirm | Review movement and the space needed to remove the card set. |
| A notebook and slim accessoriesExample packed product: 220 × 160 × 35 mm |
240 × 180 × 50mm · L × W × H | Corrugated board; grade to confirm | Include pens, tissue and any support in the packed measurement. |
| Small fabric accessoriesExample packed product: 200 × 140 × 35 mm |
220 × 160 × 50mm · L × W × H | Kraft paper or paperboard to discuss | Use paperboard only if the selected structure and packing use support it; confirm transit protection separately. |
| A folded lightweight garmentExample packed product: 280 × 220 × 40 mm |
300 × 240 × 60mm · L × W × H | Corrugated board; grade to confirm | Check the garment fold and complete pack before selecting the board grade. |
These are illustrative family-level design starting points, not stock sizes or dimensions measured from the reference image. Not every structure supports every example. Confirm the selected structure, material, clearances and final sample before production.
Discuss your size & material
