Style reference. Size, materials and printing are customized for your order.

Handle & gable boxes / STYLE E60835

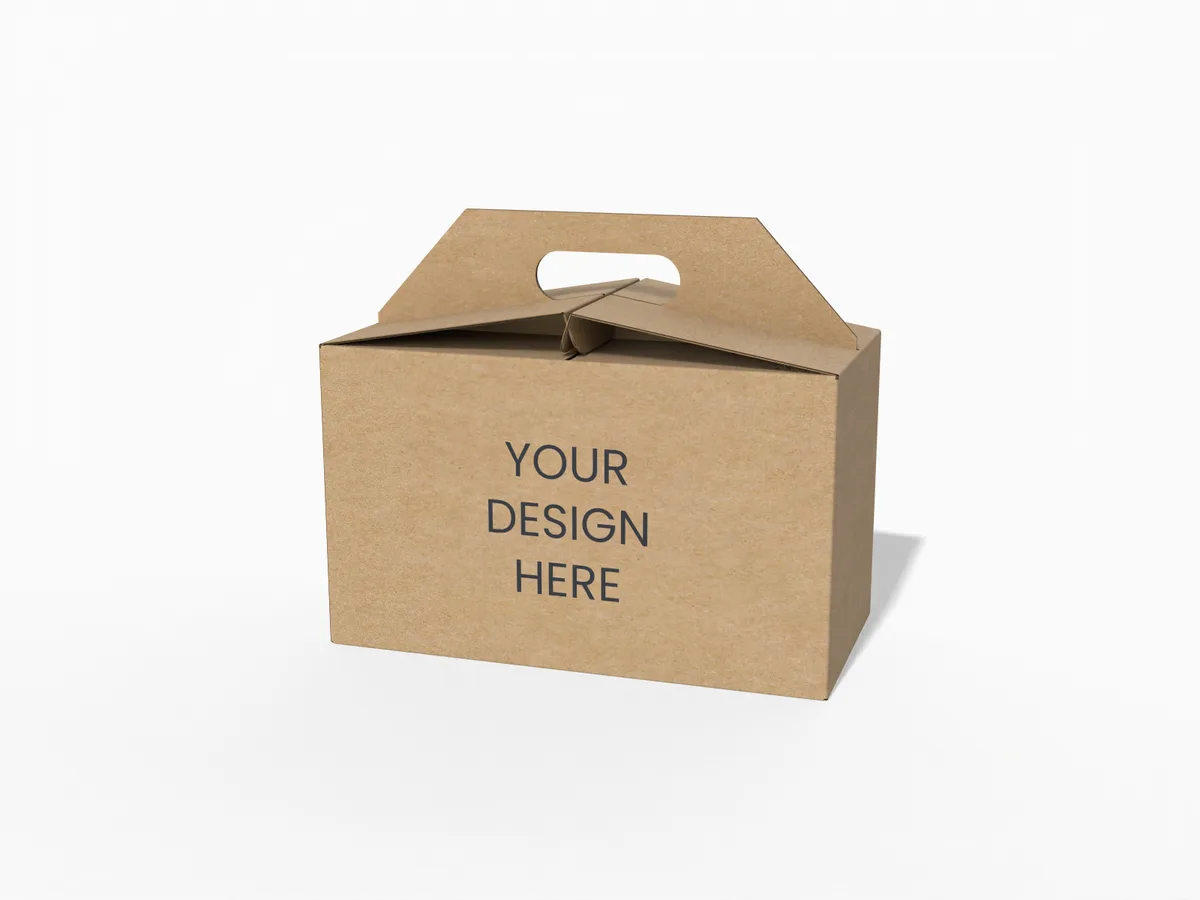

Custom Kraft Handle Boxes

Plan the carrying area with the body presentation so the handle can be used without covering essential information. Identify the carrying area separately from the usable product space.

Style reference: E60835
Structure: Handle box · carrying feature
Dimensions: Custom size, confirmed for your product
Material: Kraft paper or paperboard; weight and finish to confirm

Customize this structure View artwork guide

01 / Get the fit right

Size around your product.

Specify the body cavity and total height including the handle; review the packed sample for carrying.

Measurement convention · schematic, not to scale

L: LengthThe left-to-right span of the chosen assembled reference face.
W: WidthThe front-to-back depth of the assembled product.
H: HeightThe bottom-to-top height in its intended presentation position.

Separate usable body height from overall height including a handle or shaped top. Include the carried weight in the brief; a size alone does not establish carrying strength.

Add your target size

Measurement basisUnits

Length (L)Width (W)Height (H)

Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.

02 / Plan the visible artwork

Design for the finished product.

Keep the handle opening and its folds clear of essential text.

Flat dieline template for kraft handle boxes, style E60835. — Layout reference. Final dimensions and print areas are confirmed with your order.

Choose the main viewing surface.

Keep the handle opening and its folds clear of essential text.

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.

Request a production dieline

Try your artwork on this reference

Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.

No target size added. Add your dimensions to include them in the preview.

Use the position fields as an alternative to dragging. Values are percentages of this reference image.

Text Or upload your logo

Text colour Rotation 0° Columns Rows

Design size within each tile 75%

Left (%) Top (%) Area width (%) Area height (%)

Include in my inquiry ↗

Loading the reference…

A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.

Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.

03 / Make this structure yours

Request a quote for this style.

Send your dimensions, quantity and artwork requirements for style E60835.

Target size and measurement basis
Quantity, product details and intended use
Logo, artwork and finishing ideas

Explore gable boxes

Need to check it in hand? Explore sample options ↗

04 / A practical starting point

Recommended sizes & materials for common products.

These examples exclude extra height required by a handle or roof-shaped closure. Confirm the filled weight and intended carrying method.

Style E60835 · Suggested usable body dimensions · Numeric dimensions in mm (L × W × H).
Product & example size	Suggested usable body dimensions	Material to consider	Selection & fit notes
Wrapped party favoursExample packed product: 100 × 70 × 70 mm	120 × 90 × 90mm · L × W × H	SBS paperboard to discuss	Check the complete favour set and the top closure clearance.
Small wrapped gift itemsExample packed product: 140 × 90 × 80 mm	160 × 110 × 100mm · L × W × H	Kraft paper or paperboard to discuss	Discuss the handle and board construction for the intended filled weight.
A lightweight retail kitExample packed product: 180 × 120 × 100 mm	200 × 140 × 120mm · L × W × H	Corrugated board; grade to confirm	Review the lift points and packed balance with a physical sample.
Individually packaged snack giftsExample packed product: 160 × 100 × 90 mm	180 × 120 × 110mm · L × W × H	SBS paperboard to discuss	The example assumes packaged contents; specify any direct-contact requirements separately.

These are illustrative family-level design starting points, not stock sizes or dimensions measured from the reference image. Not every structure supports every example. Confirm the selected structure, material, clearances and final sample before production.

Discuss your size & material
