Style reference. Size, materials and printing are customized for your order.

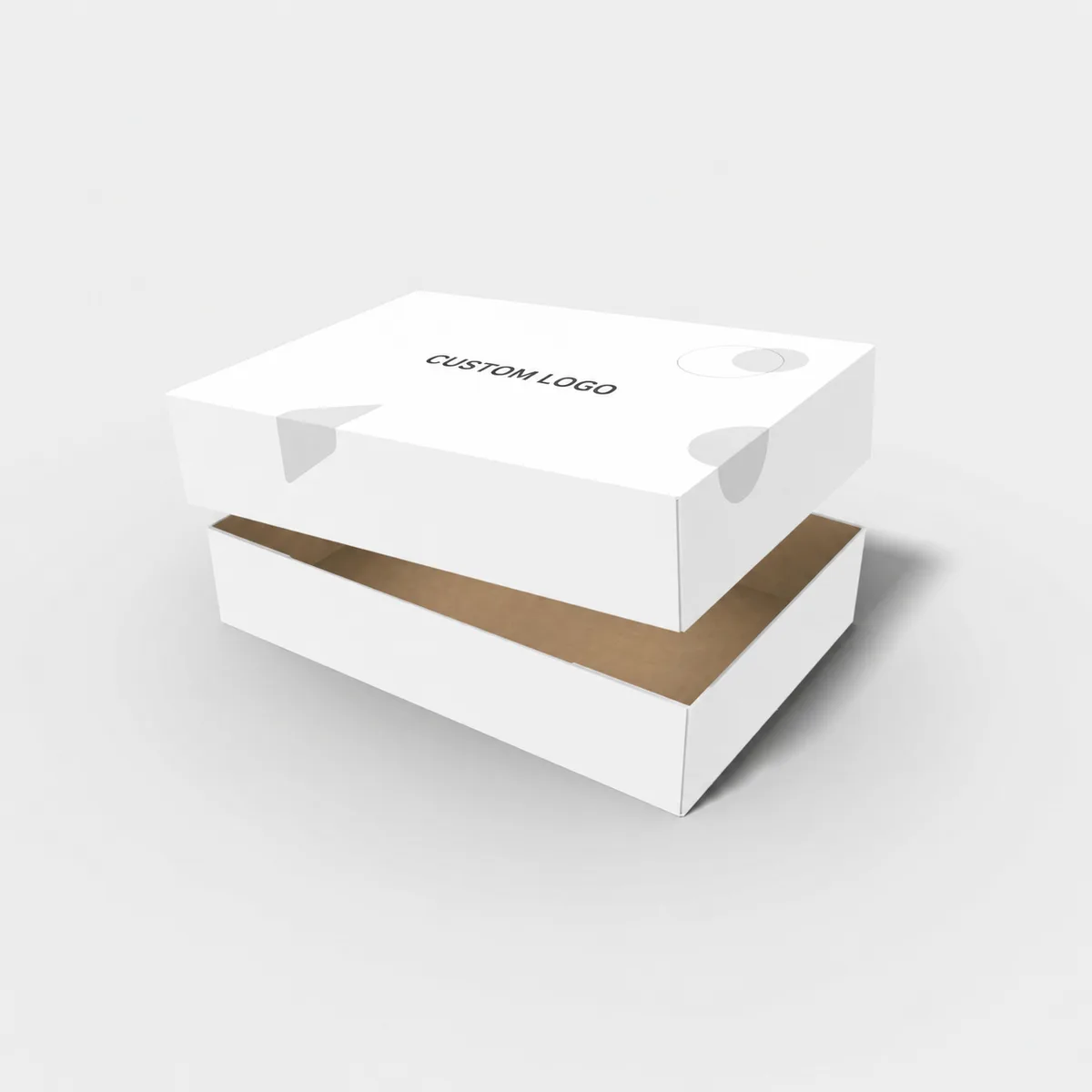

Custom Lid-and-Base Shoe Boxes
Plan the lid as the main presentation surface and the base as the product-holding component. Confirm lid overlap and the orientation of its artwork.
- Style reference
- E60632
- Structure
- Separate lid and base · lid feature
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Specify the base cavity and lid overlap separately; confirm removal clearance on a sample.
- L
- LengthThe longer side across the usable base.
- W
- WidthThe shorter side across the usable base.
- H
- HeightThe usable depth from the base to the closed top, or the open rim where applicable.
Quote the usable base cavity separately from the assembled outside size. Lid fit, overlap and material thickness need their own allowances.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep lid and base artwork aligned in the closed position without assuming identical print areas.
Choose the main viewing surface.
Keep lid and base artwork aligned in the closed position without assuming identical print areas.
Arrange the secondary information.
Confirm lid overlap and the orientation of its artwork.
Check the design against the approved layout.
Specify the base cavity and lid overlap separately; confirm removal clearance on a sample.
- Keep lid and base artwork aligned in the closed position without assuming identical print areas.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60632.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Choose a starting format for this product type, then confirm it against your content, use and selected construction.
| Product & example size | Suggested internal shoe-box dimensions | Material to consider | Selection & fit notes |
|---|---|---|---|
| A pair of small children's shoesExample project: Packed pair about 190 × 130 × 65 |
210 × 150 × 85mm · L × W × H | SBS or kraft paperboard; grade and caliper to confirm | Arrange the actual pair with its tissue before choosing the box. |
| A compact pair of adult shoesExample project: Packed pair about 280 × 170 × 90 |
300 × 190 × 110mm · L × W × H | Corrugated board; flute and strength to confirm | Check toe and heel height in the planned packing orientation. |
| A pair of larger trainersExample project: Packed pair about 320 × 200 × 105 |
340 × 220 × 125mm · L × W × H | Corrugated board; flute and strength to confirm | Include tissue, tags and any internal divider. |
| A bulky shoe or ankle-boot pairExample project: Packed pair about 340 × 260 × 130 |
360 × 280 × 150mm · L × W × H | Corrugated board; flute and strength to confirm | Measure every size range and packing arrangement separately. |
These are illustrative design starting points, not stock sizes or measurements of this reference. Confirm material, construction, printing and sample fit before production. These examples describe packed pairs; shoe size alone does not determine the box dimensions.
