Custom Packaging Trays
Arrange the product on the tray footprint and plan what remains visible above the surrounding walls.
- Style reference
- E60893
- Structure
- Open tray
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Specify the usable base and wall height separately from overlapping corner folds.
- L
- LengthThe longer side across the usable base.
- W
- WidthThe shorter side across the usable base.
- H
- HeightThe usable depth from the base to the closed top, or the open rim where applicable.
For a tapered tray, provide both base and rim dimensions. State whether depth is measured to the lowest rim, and identify any separate lid or cover.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Use the visible outside walls for supporting text and check corners after assembly.
Choose the main viewing surface.
Use the visible outside walls for supporting text and check corners after assembly.
Arrange the secondary information.
Use other visible areas for supporting details without relying on a surface covered by the contents.
- Use the visible outside walls for supporting text and check corners after assembly.
Check the design against the approved layout.
Specify the usable base and wall height separately from overlapping corner folds.
- Use the visible outside walls for supporting text and check corners after assembly.

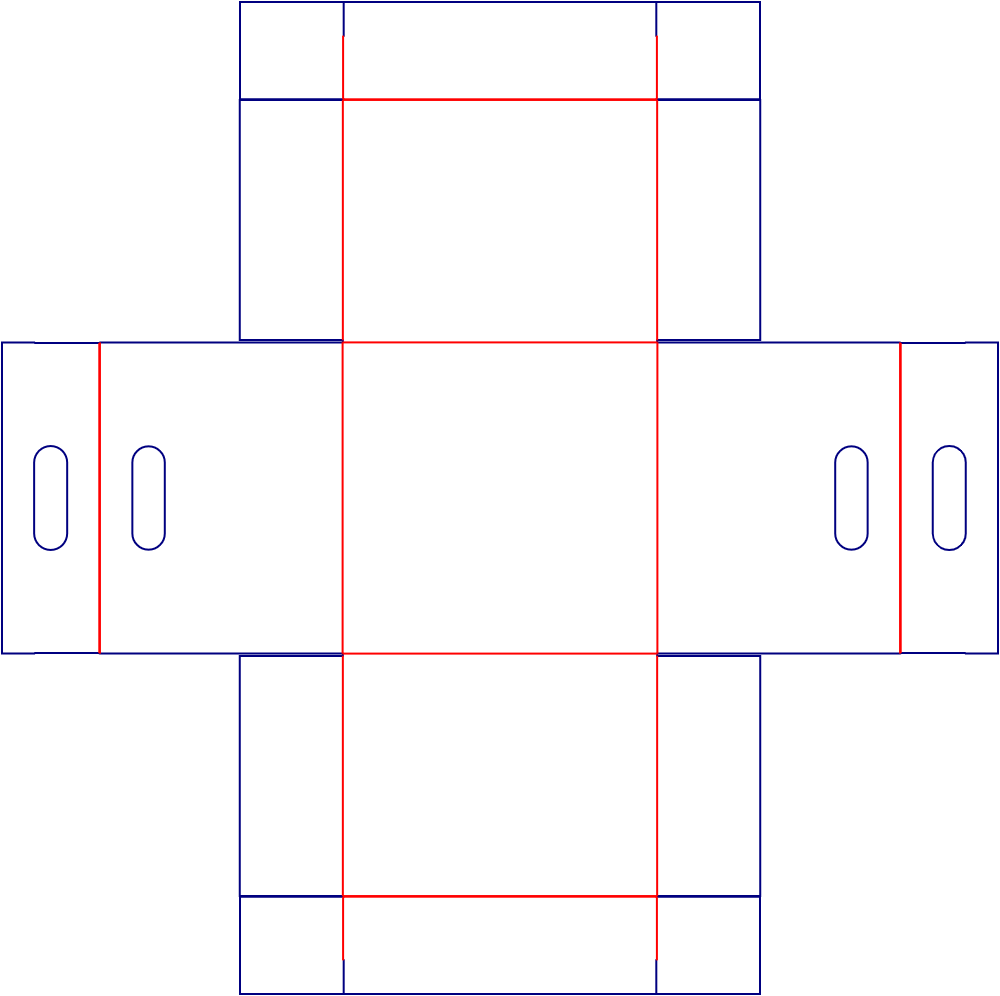

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60893.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Measure the packed arrangement and confirm the wall profile. The numbers below describe a rectangular starting envelope for a suitable tray.
| Product & example size | Suggested usable internal base and depth | Material to consider | Selection & fit notes |
|---|---|---|---|
| A wrapped stationery selectionExample packed product: 180 × 120 × 30 mm |
200 × 140 × 45mm · L × W × H | Kraft paper or paperboard to discuss | Review wall height and access to the items. |
| A set of small retail accessoriesExample packed product: 220 × 150 × 40 mm |
240 × 170 × 55mm · L × W × H | Corrugated board; grade to confirm | Check support and movement; an open tray may need an outer pack for transport. |
| Individually packaged snack portionsExample packed product: 160 × 100 × 35 mm |
180 × 120 × 50mm · L × W × H | SBS paperboard to discuss | For direct food contact, request the required material, coating and suitability review separately. |
| A compact gift assortmentExample packed product: 250 × 180 × 50 mm |
270 × 200 × 65mm · L × W × H | Corrugated board; grade to confirm | Build the arrangement first and identify any dividers or cover required. |
These are illustrative family-level design starting points, not stock sizes or dimensions measured from the reference image. Not every structure supports every example. Confirm the selected structure, material, clearances and final sample before production.
