Drawer boxes & sleeves / STYLE E60767

Custom Pivoting Drawer Boxes

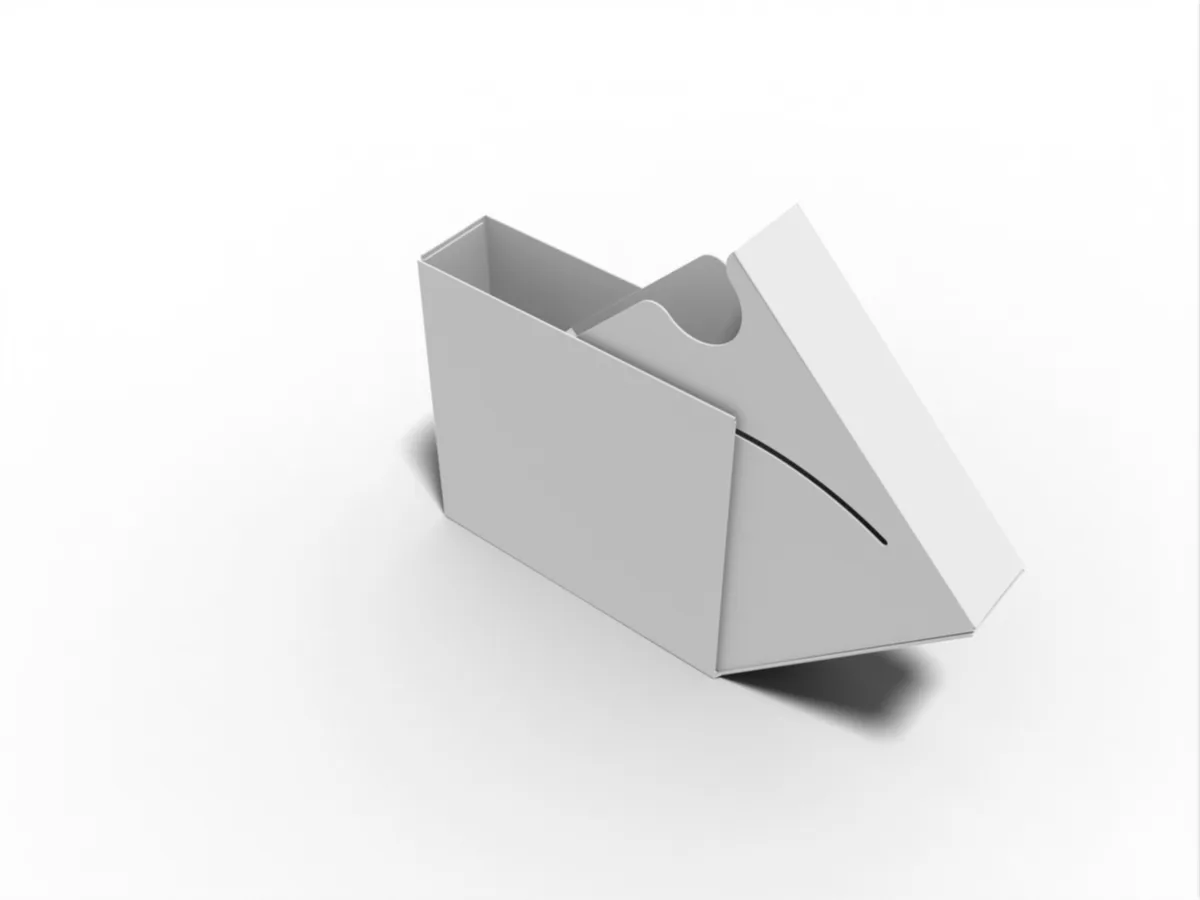

A wedge-shaped inner compartment pivots out from its outer holder. Plan the closed presentation and opening sweep together.

Style reference
E60767
Structure
Pivoting drawer box
Dimensions
Custom size, confirmed for your product
Material
SBS or kraft paperboard; grade and caliper to confirm
Customize this structure View artwork guide
01 / Get the fit right

Size around your product.

Check the full pivoting sweep, curved track and access to the loaded compartment; do not use a straight sliding-fit allowance.

Length, Width, Height measurement convention; schematic, not to scale WLH
Measurement convention · schematic, not to scale
L
LengthThe longer side across the usable base.
W
WidthThe shorter side across the usable base.
H
HeightThe usable depth from the base to the closed top, or the open rim where applicable.

Measure the usable pivoting compartment and the closed outside envelope separately. Confirm the full pivoting sweep, curved track and material thickness on an assembled sample.

Add your target size

Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.

02 / Plan the visible artwork

Design for the finished product.

Plan the outer holder and the exposed compartment as separate printed surfaces. Keep artwork clear of the pivot and curved track.

Flat dieline template for pivoting drawer boxes, style E60767.
Layout reference. Final dimensions and print areas are confirmed with your order.

Outer holder.

Plan the outer holder and the exposed compartment as separate printed surfaces. Keep artwork clear of the pivot and curved track.

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.

Request a production dieline
Try your artwork on this reference

Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.

No target size added. Add your dimensions to include them in the preview.

Use the position fields as an alternative to dragging. Values are percentages of this reference image.

Include in my inquiry ↗

Loading the reference…

A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.

  1. Keep the layers separate.

    Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.

  2. Check the reading direction.

    Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.

  3. Approve a physical reference.

    Use the appropriate sample to check fit, opening and print position before confirming production.

03 / Make this structure yours

Request a quote for this style.

Send your dimensions, quantity and artwork requirements for style E60767.

  • Target size and measurement basis
  • Quantity, product details and intended use
  • Logo, artwork and finishing ideas
Explore drawer boxes

Need to check it in hand? Explore sample options ↗

Review your brief on the contact page, or email this style directly.
04 / A practical starting point

Recommended sizes & materials for common products.

Measure the loaded compartment and its entire opening sweep within the outer holder.

Style E60767 · Pivoting compartment and opening-clearance brief · Numeric dimensions in mm (L × W × H).
Product & example sizePivoting compartment and opening-clearance briefMaterial to considerSelection & fit notes
Packed contentsMeasurements to provide:
Maximum item outline and arrangement		 Confirm with the assembled sampleConfirm for your product Board grade, thickness and construction to confirm Check the loaded compartment through its full curved opening path.
Inner compartmentMeasurements to provide:
Usable length, width and height at the narrowest points		 Confirm with the assembled sampleConfirm for your product Board grade, thickness and construction to confirm Check the loaded compartment through its full curved opening path.
Outer holderMeasurements to provide:
Closed outside envelope and support clearances		 Confirm with the assembled sampleConfirm for your product Board grade, thickness and construction to confirm Check the loaded compartment through its full curved opening path.
Opening sweepMeasurements to provide:
Pivot position, curved track and access space		 Confirm with the assembled sampleConfirm for your product Board grade, thickness and construction to confirm Check the loaded compartment through its full curved opening path.

These are planning prompts, not stock sizes or measurements inferred from the reference. Confirm the complete fitted sample.
