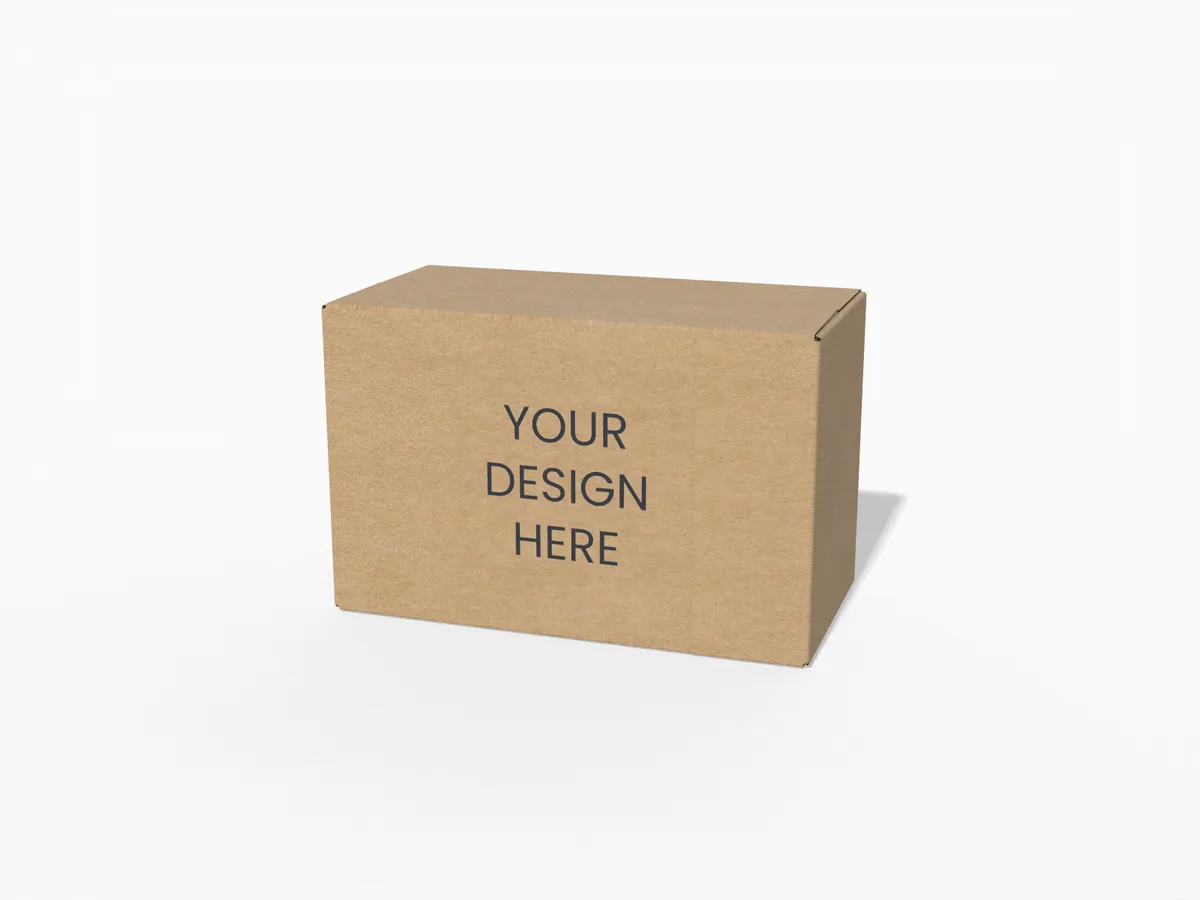

Style reference. Size, materials and printing are customized for your order.
Custom Shipping Cartons
Plan the outer carton around the complete protective pack and the way it will be loaded and closed. Specify flute and strength after the complete packed sample is reviewed.
- Style reference
- E61211
- Structure
- Shipping carton · corrugated-board reference
- Dimensions
- Custom size, confirmed for your product
- Material
- Corrugated board; flute and strength to confirm
Size around your product.
Measure the packed assembly, then confirm internal clearance, board grade and shipping requirements.
- L
- LengthThe left-to-right span of the chosen assembled reference face.
- W
- WidthThe front-to-back depth of the assembled product.
- H
- HeightThe bottom-to-top height in its intended presentation position.
Measure the contents together with protection and inserts. Distinguish usable internal dimensions from carrier-facing external measurements and include the filled weight.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep shipping information on a readable outer face and check flap overlap.
Choose the main viewing surface.
Keep shipping information on a readable outer face and check flap overlap.
Arrange the secondary information.
Specify flute and strength after the complete packed sample is reviewed.
Check the design against the approved layout.
Measure the packed assembly, then confirm internal clearance, board grade and shipping requirements.
- Keep shipping information on a readable outer face and check flap overlap.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E61211.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
These examples assume that the product measurement already includes its protective packing. The final grade and clearances depend on the shipment.
| Product & example size | Suggested carton internal dimensions | Material to consider | Selection & fit notes |
|---|---|---|---|
| A protected small retail packExample packed product: 180 × 120 × 80 mm |
200 × 140 × 100mm · L × W × H | Corrugated board; grade to confirm | Check movement, closure space and the protection selected for the product. |
| A protected set of folded garmentsExample packed product: 300 × 220 × 120 mm |
320 × 240 × 140mm · L × W × H | Corrugated board; grade to confirm | Use the actual fold and packed quantity to confirm the carton. |
| A protected multi-item orderExample packed product: 360 × 260 × 180 mm |
380 × 280 × 200mm · L × W × H | Corrugated board; grade to confirm | Review dividers, loading arrangement and the complete filled weight. |
| A protected lightweight home accessoryExample packed product: 450 × 320 × 220 mm |
470 × 340 × 240mm · L × W × H | Corrugated board; grade to confirm | Confirm the full transit pack with the chosen carrier and handling conditions. |
These are illustrative family-level design starting points, not stock sizes or dimensions measured from the reference image. Not every structure supports every example. Confirm the selected structure, material, clearances and final sample before production. No board grade or transport-performance claim is established by these dimensions.
Discuss your size & material
