Style reference. Size, materials and printing are customized for your order.
Custom Sleeve-and-Drawer Boxes

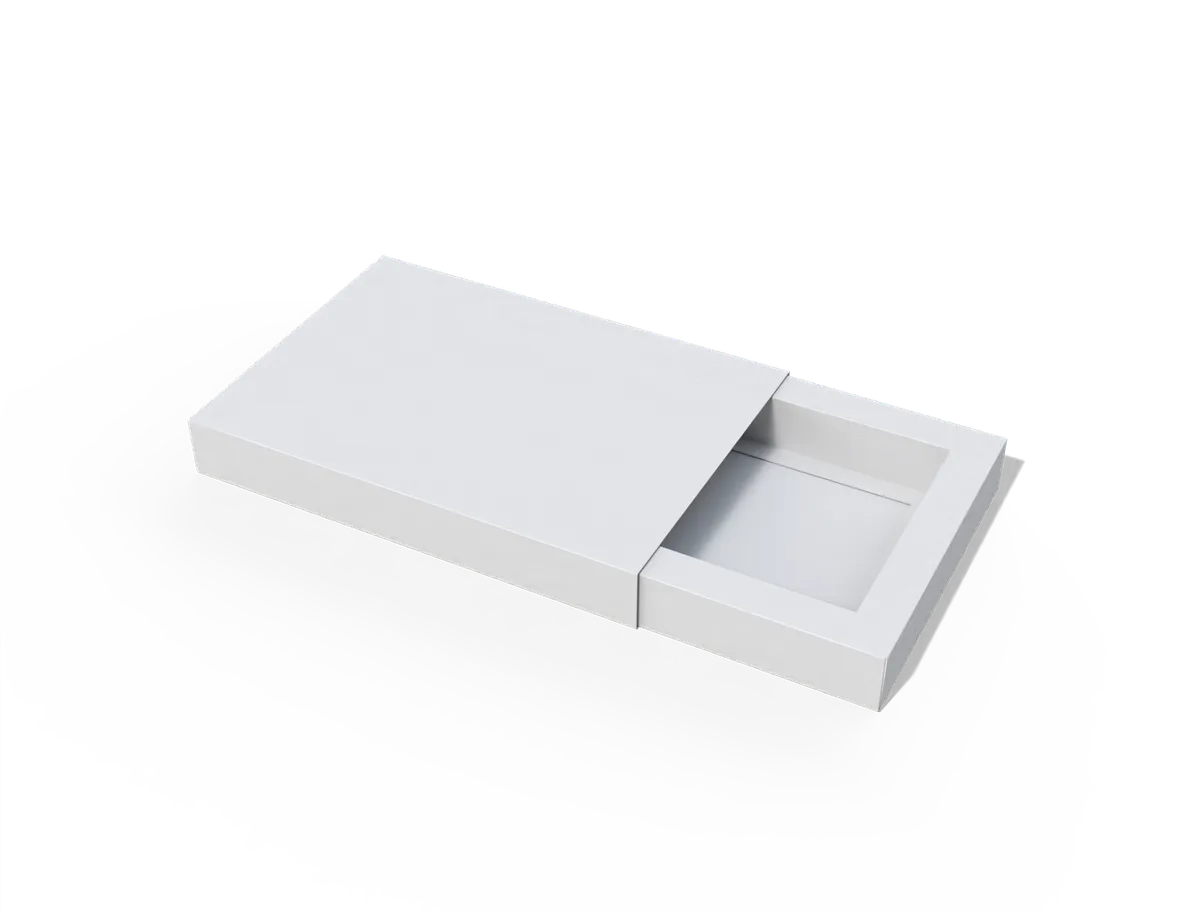

An inner tray slides within an outer sleeve. Plan the sleeve presentation and tray reveal separately.
- Style reference
- E60927
- Structure
- Sleeve-and-drawer box
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Specify usable tray cavity and sleeve sliding fit separately.
- L
- LengthThe longer side across the usable base.
- W
- WidthThe shorter side across the usable base.
- H
- HeightThe usable depth from the base to the closed top, or the open rim where applicable.
For a drawer, provide usable tray dimensions. For a sleeve, provide the full outside size of the object it surrounds. Sliding clearance and material thickness are developed separately.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Orient the sleeve artwork around its folds and the tray artwork for removal.
Outer sleeve.
Orient the sleeve artwork around its folds and the tray artwork for removal.
Inner tray.
Treat the tray reveal as a separate artwork surface and check what remains visible when the drawer is closed.
- Orient the sleeve artwork around its folds and the tray artwork for removal.
Sliding edges.
Specify usable tray cavity and sleeve sliding fit separately.
- Orient the sleeve artwork around its folds and the tray artwork for removal.
Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60927.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
The tray and sleeve form two components. Define the item arrangement first, then develop the sliding fit and access from an assembled sample.
| Product & example size | Inner-tray cavity and outer-sleeve fit specified separately | Material to consider | Selection & fit notes |
|---|---|---|---|
| Packed item or gift arrangementInformation to provide: Complete outline including wrap and inserts |
Confirm the usable inner-tray cavityConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Allow room for loading and removing the contents. |
| Inner trayInformation to provide: Assembled outside length, width and height |
Develop the sleeve around the trayConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Board thickness and folded walls affect sliding fit. |
| Outer sleeveInformation to provide: Insertion direction and sleeve length |
Confirm sleeve internal fit separatelyConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Do not substitute the sleeve outside dimensions for tray usable space. |
| Opening accessInformation to provide: How the tray will be gripped and removed |
Develop the opening and any pull detailConfirm for your product | SBS or kraft paperboard; grade and caliper to confirm | Review access and artwork in both closed and open positions. |
This is a project-specific sizing brief, not a stock size or a measurement inferred from the reference image. Confirm the selected structure, substrate, clearances and assembled sample before production.
