Custom Hexagonal Lid-and-Base Boxes
Plan the lid as the main presentation surface and the base as the product-holding component. State whether width is measured across opposite faces or opposite corners.
- Style reference
- E60657
- Structure
- Hexagonal lid-and-base box
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
State whether width is measured across opposite faces or opposite corners.
- L
- LengthThe longer side across the usable base.
- W
- WidthThe shorter side across the usable base.
- H
- HeightThe usable depth from the base to the closed top, or the open rim where applicable.
Quote the usable base cavity separately from the assembled outside size. Lid fit, overlap and material thickness need their own allowances.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep lid and base artwork aligned in the closed position without assuming identical print areas.
Choose the main viewing surface.
Keep lid and base artwork aligned in the closed position without assuming identical print areas.
Arrange the secondary information.
Use the lower or secondary visible surfaces for product details and supporting graphics.
- Keep lid and base artwork aligned in the closed position without assuming identical print areas.
Check the design against the approved layout.
State whether width is measured across opposite faces or opposite corners.
- Keep lid and base artwork aligned in the closed position without assuming identical print areas.

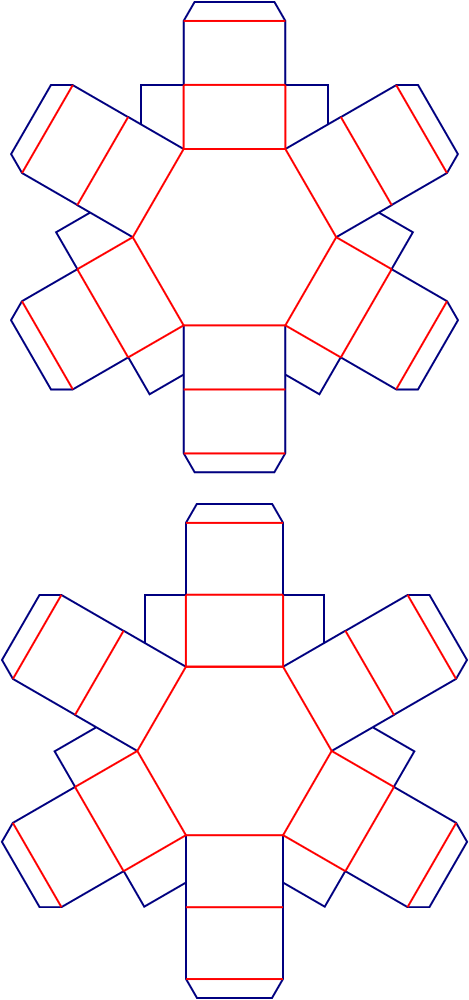

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60657.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Choose the cavity around the packed contents, then develop the matching cover. The suggestions below do not set the lid dimensions.
| Product & example size | Suggested base internal dimensions | Material to consider | Selection & fit notes |
|---|---|---|---|
| A stationery gift setExample packed product: 180 × 130 × 30 mm |
200 × 150 × 45mm · L × W × H | SBS paperboard to discuss | For a paperboard version, check corner construction and the fit between components. |
| A folded scarfExample packed product: 230 × 160 × 35 mm |
250 × 180 × 50mm · L × W × H | Wrapped greyboard construction to discuss | For a rigid version, include tissue and the wrapped board thickness in development. |
| A compact board-game setExample packed product: 250 × 180 × 45 mm |
270 × 200 × 60mm · L × W × H | Corrugated board; grade to confirm | Measure the full stack and review lift-off clearance with a sample. |
| A small presentation giftExample packed product: 100 × 80 × 35 mm |
120 × 100 × 50mm · L × W × H | Wrapped greyboard construction to discuss | Specify any separate insert and its usable cavity before fixing the base size. |
These are illustrative family-level design starting points, not stock sizes or dimensions measured from the reference image. Not every structure supports every example. Confirm the selected structure, material, clearances and final sample before production.
