Style reference. Size, materials and printing are customized for your order.
Custom Rigid Jewelry Drawer Boxes

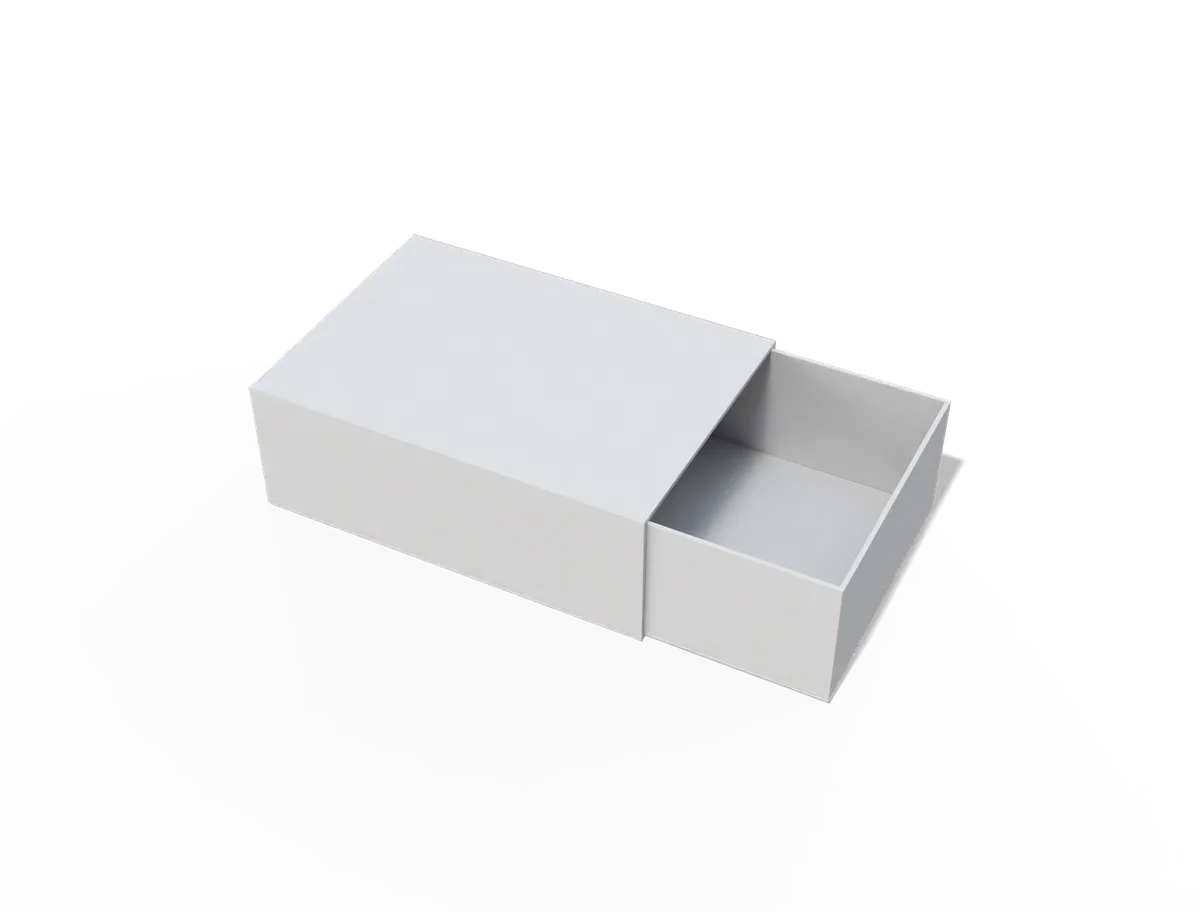

An inner tray slides from an outer sleeve. Plan the outer presentation and the tray reveal as two connected views.
- Style reference
- E60725
- Structure
- Rigid sliding drawer box
- Dimensions
- Custom size, confirmed for your product
- Material
- Wrapped rigid board; wrap and board thickness to confirm
Size around your product.
Specify the tray cavity and sleeve sliding fit separately; allow room to grasp the tray.
- L
- LengthThe longer side across the usable base.
- W
- WidthThe shorter side across the usable base.
- H
- HeightThe usable depth from the base to the closed top, or the open rim where applicable.
Measure the usable compartment around the full gift set. The finished outside size also depends on board, covering material, hinges and other selected components.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep the sleeve artwork continuous around its folds and orient tray artwork for opening.
Outer sleeve.
Keep the sleeve artwork continuous around its folds and orient tray artwork for opening.
Inner tray.
Treat the tray reveal as a separate artwork surface and check what remains visible when the drawer is closed.
- Keep the sleeve artwork continuous around its folds and orient tray artwork for opening.
Sliding edges.
Specify the tray cavity and sleeve sliding fit separately; allow room to grasp the tray.
- Keep the sleeve artwork continuous around its folds and orient tray artwork for opening.

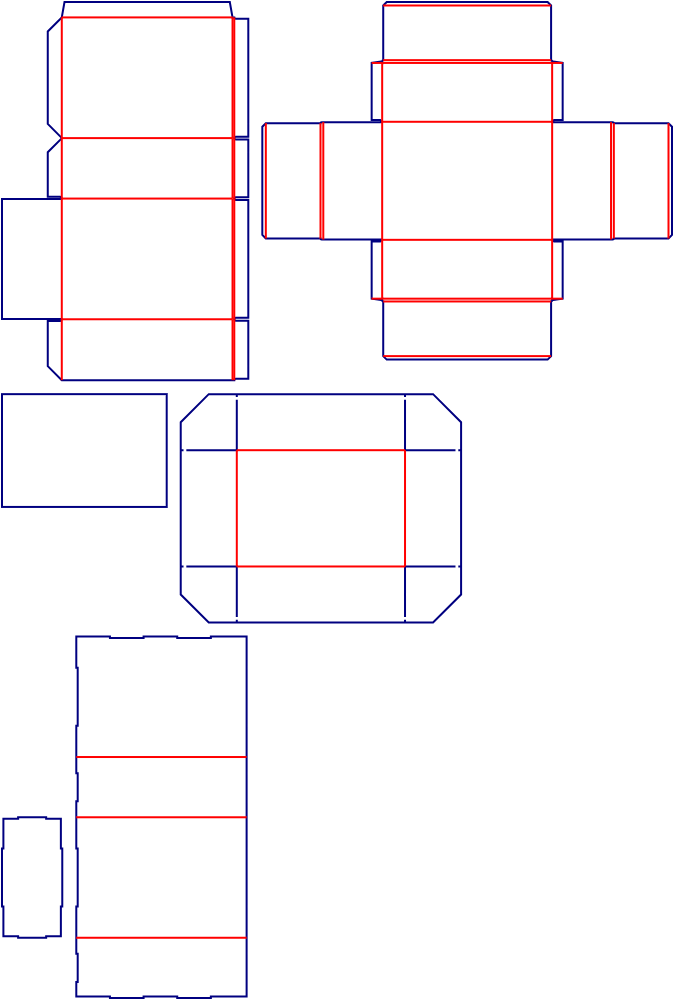

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60725.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
Begin with the packed presentation, including any tray or insert. These dimensions describe a possible cavity, not the outside of the finished gift box.
| Product & example size | Suggested usable compartment dimensions | Material to consider | Selection & fit notes |
|---|---|---|---|
| A small jewellery pouchExample packed product: 70 × 60 × 20 mm |
90 × 80 × 35mm · L × W × H | Wrapped greyboard construction to discuss | Specify the pouch and insert together; the cavity alone does not secure the item. |
| A compact skincare gift setExample packed product: 160 × 120 × 45 mm |
190 × 150 × 60mm · L × W × H | Wrapped greyboard construction to discuss | Arrange the set and support first, then develop the wrapped shell. |
| A folded scarf in tissueExample packed product: 230 × 160 × 35 mm |
260 × 190 × 55mm · L × W × H | Specialty paper finish to discuss | Discuss specialty paper as a covering finish over an agreed structural board. |
| A notebook presentation setExample packed product: 220 × 160 × 30 mm |
250 × 190 × 50mm · L × W × H | Wrapped greyboard construction to discuss | Include removal clearance and the intended insert or ribbon in the sample brief. |
These are illustrative family-level design starting points, not stock sizes or dimensions measured from the reference image. Not every structure supports every example. Confirm the selected structure, material, clearances and final sample before production.
Discuss your size & material
