Style reference. Size, materials and printing are customized for your order.
Custom Drawer Boxes with Fitted Inserts

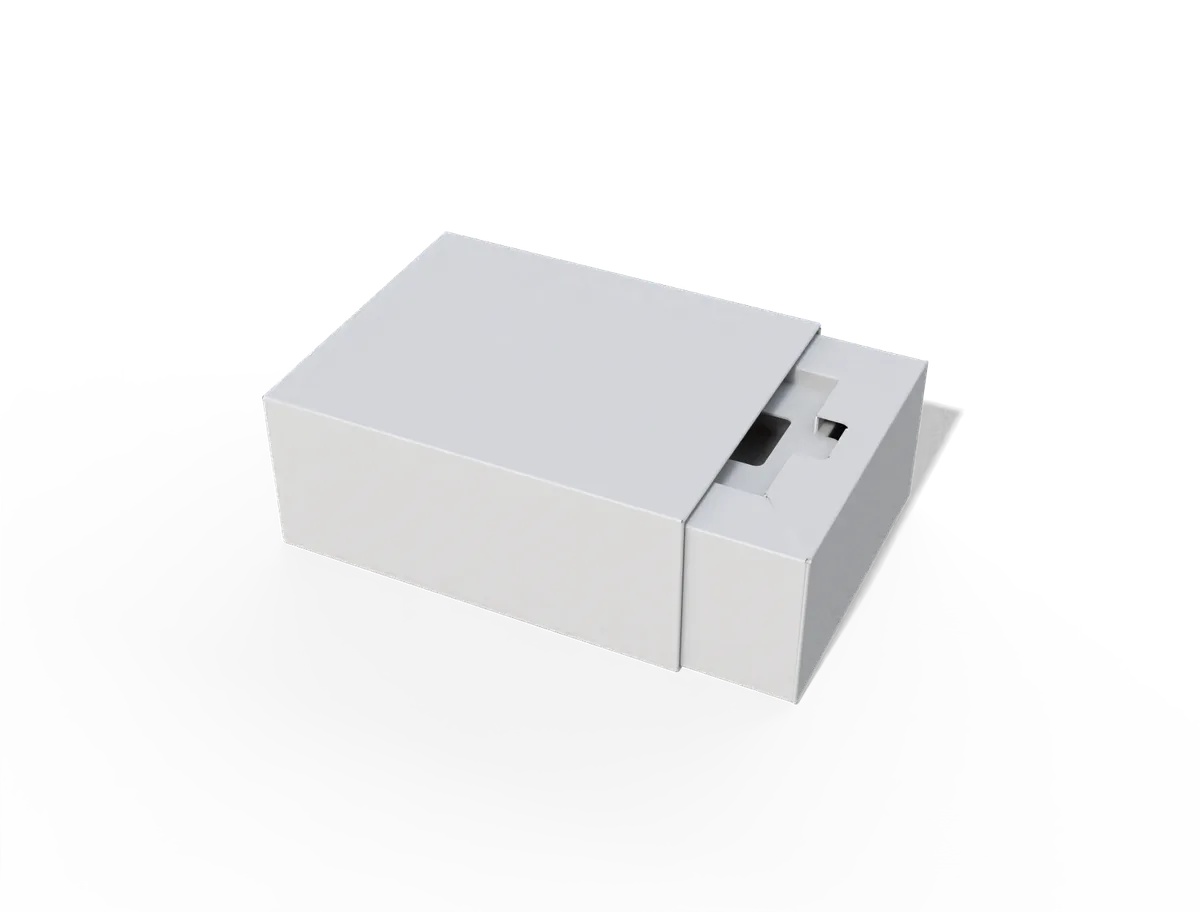

An inner tray slides from an outer sleeve. Plan the outer presentation and the tray reveal as two connected views. Measure the usable cells or support openings as well as the outer cavity.
- Style reference
- E60762
- Structure
- Drawer box with fitted inserts
- Dimensions
- Custom size, confirmed for your product
- Material
- SBS or kraft paperboard; grade and caliper to confirm
Size around your product.
Measure the usable cells or support openings as well as the outer cavity.
- L
- LengthThe longer side across the usable base.
- W
- WidthThe shorter side across the usable base.
- H
- HeightThe usable depth from the base to the closed top, or the open rim where applicable.
For a drawer, provide usable tray dimensions. For a sleeve, provide the full outside size of the object it surrounds. Sliding clearance and material thickness are developed separately.
Add your target size
Your values appear on the diagram and in your inquiry. The reference drawing stays at its original proportions.
Design for the finished product.
Keep the sleeve artwork continuous around its folds and orient tray artwork for opening.
Outer sleeve.
Keep the sleeve artwork continuous around its folds and orient tray artwork for opening.
Inner tray.
Treat the tray reveal as a separate artwork surface and check what remains visible when the drawer is closed.
- Keep the sleeve artwork continuous around its folds and orient tray artwork for opening.
Sliding edges.
Measure the usable cells or support openings as well as the outer cavity.
- Keep the sleeve artwork continuous around its folds and orient tray artwork for opening.

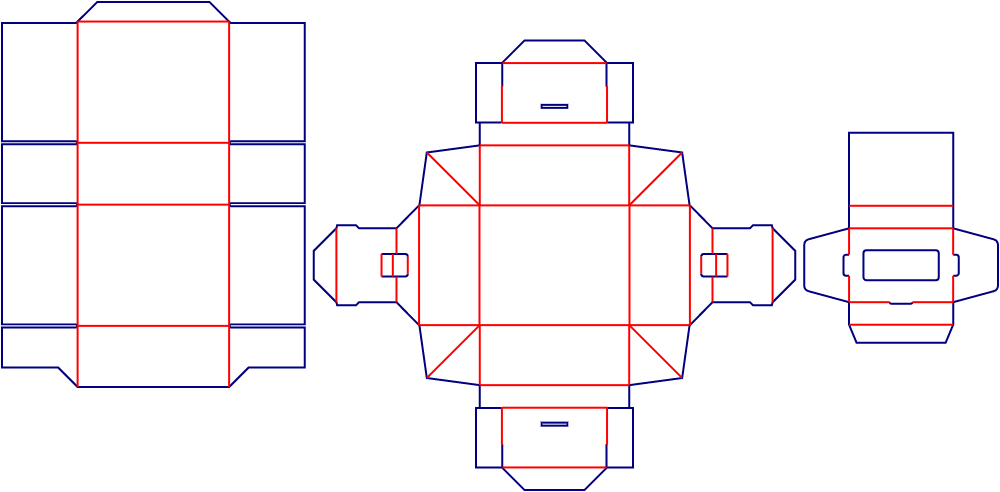

Prepare artwork on the approved production dieline at final size. Confirm bleed, print sides and safe margins before printing.
Request a production dielineTry your artwork on this reference
Select an area on the reference, add text or your logo, then adjust its direction and repeat pattern. Download a placement preview to include with your inquiry.
No target size added. Add your dimensions to include them in the preview.
Use the position fields as an alternative to dragging. Values are percentages of this reference image.
Loading the reference…
A placement concept, not a print-ready file. Confirm print sides, cutouts, glue areas and safe margins on your production layout. Your uploaded image stays in this browser.
- Keep the layers separate.
Place the dieline on its own reference layer. Keep it out of the printed artwork unless your production file instructions say otherwise.
- Check the reading direction.
Review logos and text in the finished orientation. Carry patterns across folds only after checking their alignment.
- Approve a physical reference.
Use the appropriate sample to check fit, opening and print position before confirming production.
Request a quote for this style.
Send your dimensions, quantity and artwork requirements for style E60762.
- Target size and measurement basis
- Quantity, product details and intended use
- Logo, artwork and finishing ideas
Need to check it in hand? Explore sample options ↗
Recommended sizes & materials for common products.
The examples below apply to a drawer-and-sleeve version. For a sleeve-only style, develop its internal fit around the actual object instead.
| Product & example size | Suggested usable drawer cavity | Material to consider | Selection & fit notes |
|---|---|---|---|
| A wrapped small accessoryExample packed product: 80 × 50 × 20 mm |
100 × 70 × 35mm · L × W × H | SBS paperboard to discuss | Review the sliding fit and removal access with the chosen board. |
| A jewellery pouchExample packed product: 65 × 65 × 20 mm |
85 × 85 × 35mm · L × W × H | Wrapped greyboard construction to discuss | For a rigid construction, add the wrap thickness to the component fit study. |
| A stationery setExample packed product: 150 × 90 × 20 mm |
170 × 110 × 35mm · L × W × H | Kraft paper or paperboard to discuss | Confirm where the set sits and whether a separate support is needed. |
| A folded fabric accessoryExample packed product: 200 × 140 × 30 mm |
220 × 160 × 45mm · L × W × H | Wrapped greyboard construction to discuss | Measure the complete wrapped fold before specifying the tray. |
These are illustrative family-level design starting points, not stock sizes or dimensions measured from the reference image. Not every structure supports every example. Confirm the selected structure, material, clearances and final sample before production.
Discuss your size & material
